ADTRAN NetVanta 3205 Hardware Installation Guide

NetVanta 3000 Series Hardware Installation Guide Option Modules
61200860L1-34L Copyright © 2006 ADTRAN, Inc. 55
NetVanta SHDSL NIM (P/N 1200867L1)
The NetVanta SHDSL NIM (shown in Figure 24) provides a WAN SHDSL interface for the NetVanta. See
Table A-11 on page 78 for the SHDSL connector pinouts. See Table A-14 on page 80 for the DBU
connector pinouts. An optional DIM is required for dial backup applications.

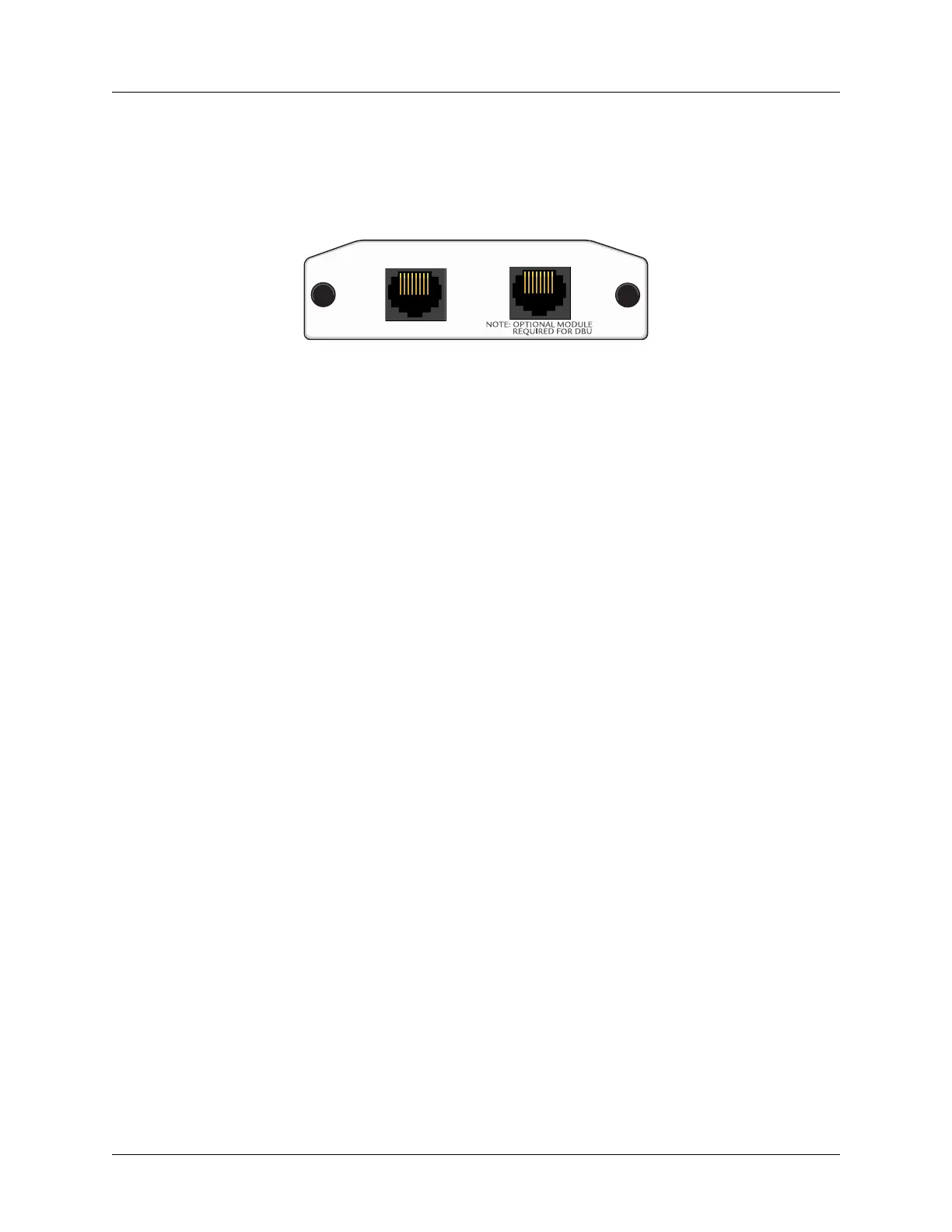

Figure 24. NetVanta SHDSL NIM
WAN-SHDSL
DBU
Features and Specifications
Operating Mode
• Line termination (CO)
• Network termination (CPE)
SHDSL Interface
• Supported Standards: ITU-T G.991.2
SHDSL
• Line Rate: 200 to 2312 kbps in
64k increments
• Line Code: TC-PAM
• Connector: RJ-45
Clock Source
• CPE Operating Mode: Network
• CO Operating Mode: Internal
Diagnostics
• Test Pattern Generation and Detection:
2
15
- 1
• Network loopbacks (local and remote)
• Alarm generation and detection
• Programmable alarm threshold setting for
loop attenuation and signal-to-noise ratio
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 7
•AS/ACIF S043
• EN 60950
• AS/NZS 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
