Advantage Controls MegaTronMT User Manual

11

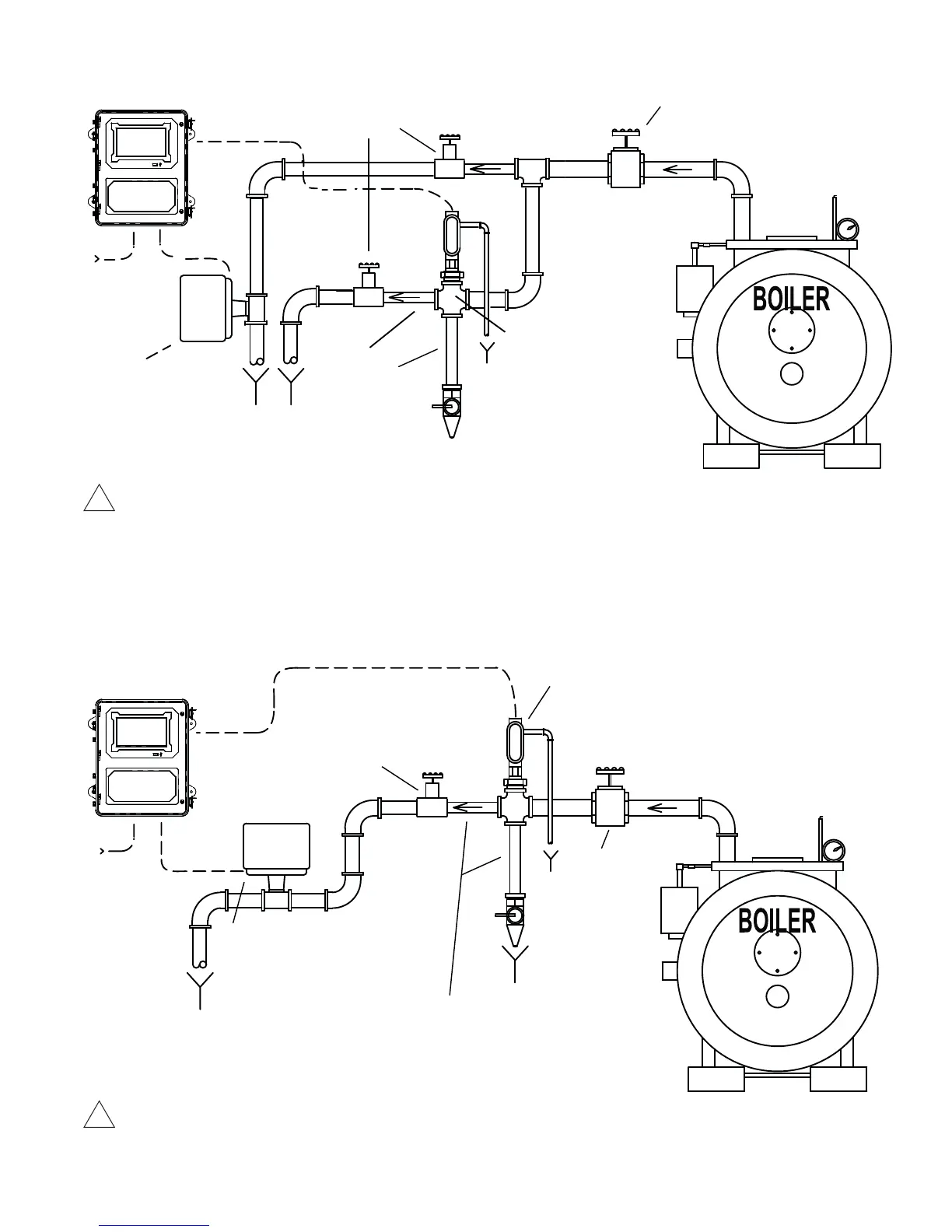

Boiler Conductivity Electrodes
Throttling device
1/2" pipe
between probe
and throttle
device and
flush valve
Electrically
actuated
blow down
valve
Electrode within a 1"
cross with electrical
connection vented
Fully ported
gate or ball valve
1" Continuous
blow down line
!
Warning - Do not use on bottom blowdown lines, only continuous or surface blowdown lines.
Typical Timed Sampling and Sample and Hold Boiler Installation
Throttling device
approximately 18"
past probe
Electrode within a 1"
cross with electrical
connection vented
1/2" pipe between
probe and throttle
device and to the
flush valve
Electrically actuated
blow down valve
To drain
Fully ported
gate or ball
valve
1" Continuous
blow down line
!
Warning - Do not use on bottom blowdown lines, only continuous or surface blowdown lines.
