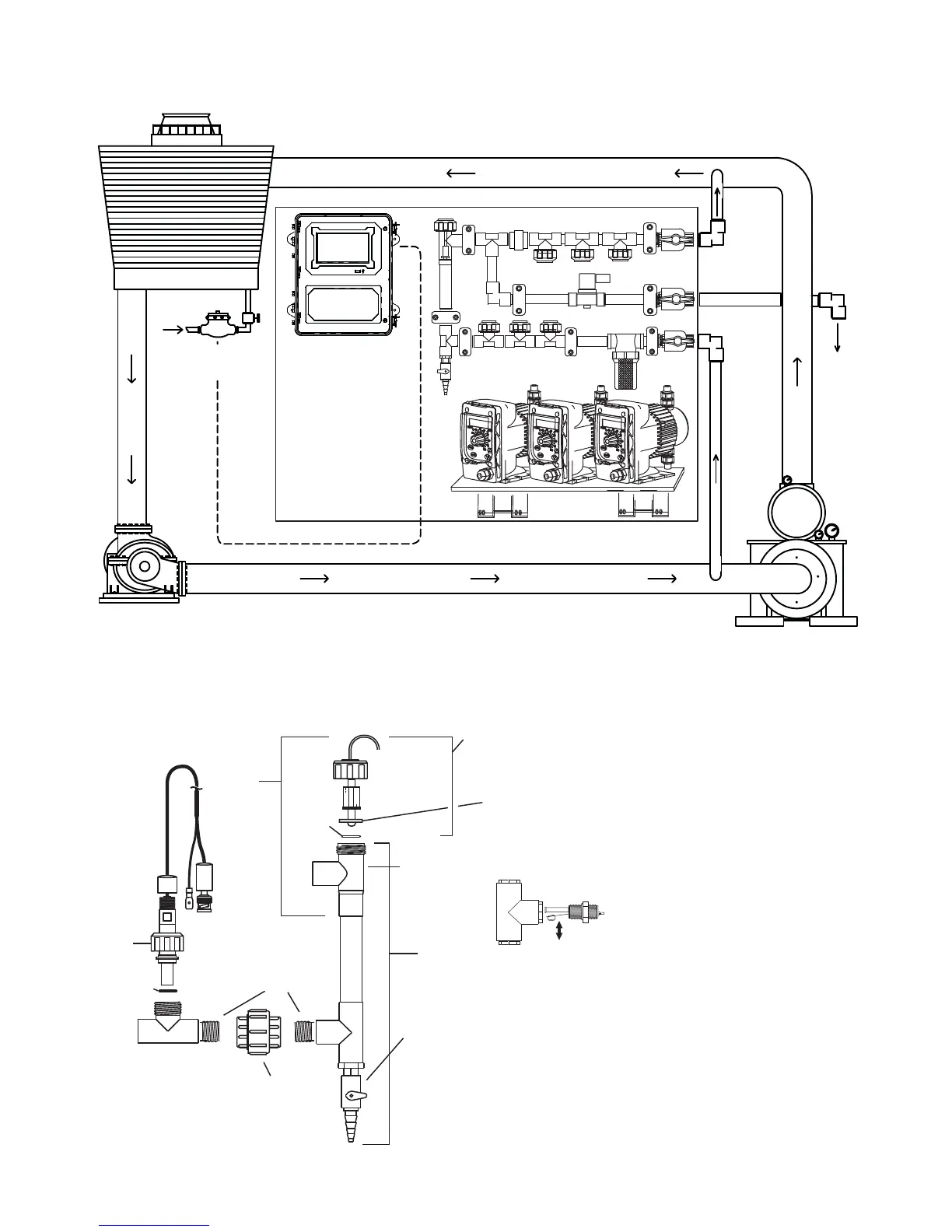

Typical Cooling Tower Installation Diagram
COOLING TOWER
CIRCULATION
PUM P
CHILLER
BLEED VALVE
TO DRAIN
BLOWDOWN
MAKE-UP
WATERMETER
Cooling Tower Probe Assembly
Standard Tower Probes
Conductivity ...................E-4A
pH ..................................PE-2
ORP .............................. OE-2
FS-0C
FS-FC
FS-SP
-or-
PE-21
OE-21
PE-NUT
pH Probe
ORP Probe
OR
FS-T
TFS-OC
TFS-C
FS-B1-SP
Sample Valve
E-30-PH
2C0A-150
UNION-3/4TT
FS-PT-P
Paddle Flow Switch
used with option
E3
E-30-PH
1A9A000262
