Calibration
5-12 ADAM 4000 Series User's Manual
4. Execute the Span Calibration command. This can be done with the
ADAM utility software. (See "A/O 10 V Calibration" option in the
Calibration sub-menu of the ADAM utility software.)
5. Check the actual output value at the module's terminals. If this does not
equal 0 V or 10 V, use the Trim Calibration command to change the
output value. This is also done with the ADAM utility software. (Use
the arrow key to adjust the output value after executing the "A/O 0V
Calibration" or "A/O 10 V Calibration", use the arrow key to adjust the
output value. Right and Up keys mean increasing, Left and Down keys
mean decreasing).

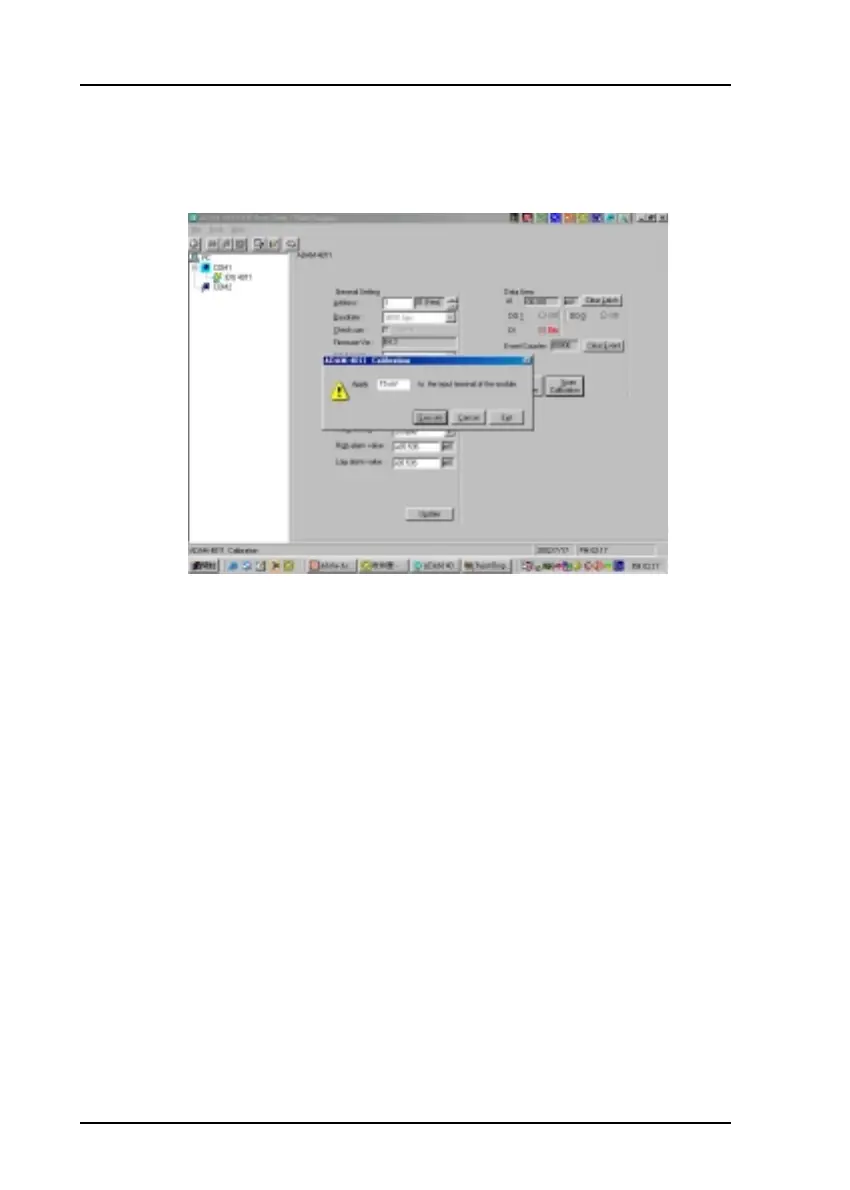

Figure 5-9 Span Calibration
