Utility Software
D-6 ADAM 4000 Series User's Manual
Terminal Emulation is a full screen version of Command Test. (See Figure D-
4, below.) Previous commands and their responses stay on the screen for
you to refer to. If you want to repeatedly send a command, press <F10> and
a dialogue box will appear into which you can enter the command. Press
<Enter> to send the command. To stop the repeating command, press any
key.

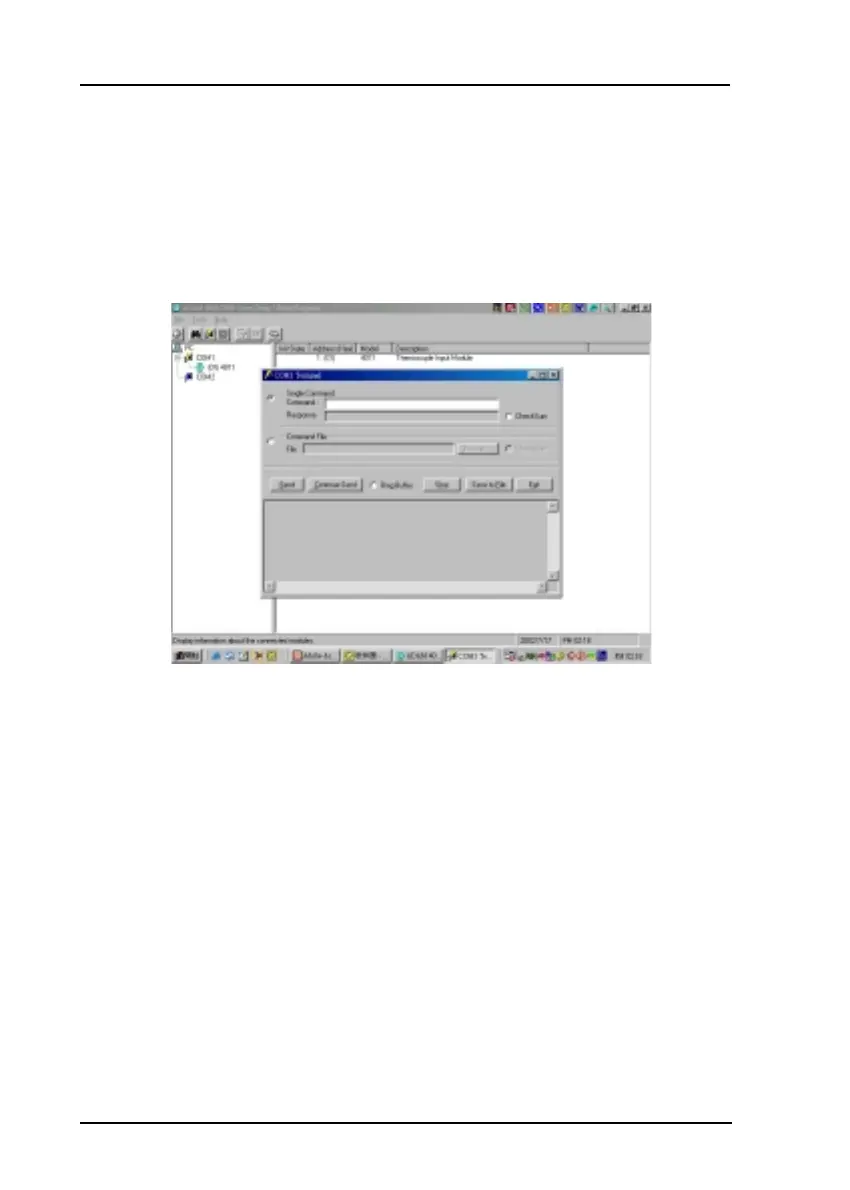

Figure D-4
Terminal Emulation
A box on the right hand side of the screen shows the communication
parameters for the serial line such as the baud rate and number of stop bits.
Quit
Choosing the Quit option ends the ADAM utility program.
