Chapter 4 System Configuration
Invert signal
It will invert the logic state of input signal. In another words, when no signal pulse
come into DI channel, the DI status will be logic high ("1")
DI status LED
When DI channel is activated, it will light up.
Digital filter
It contains minimum high signal width and minimum low signal width (1-65535) for fil-
tering the noise.
Channel Information
The information including address, type, channel, mode, value, and DI mode will
show on the screen.

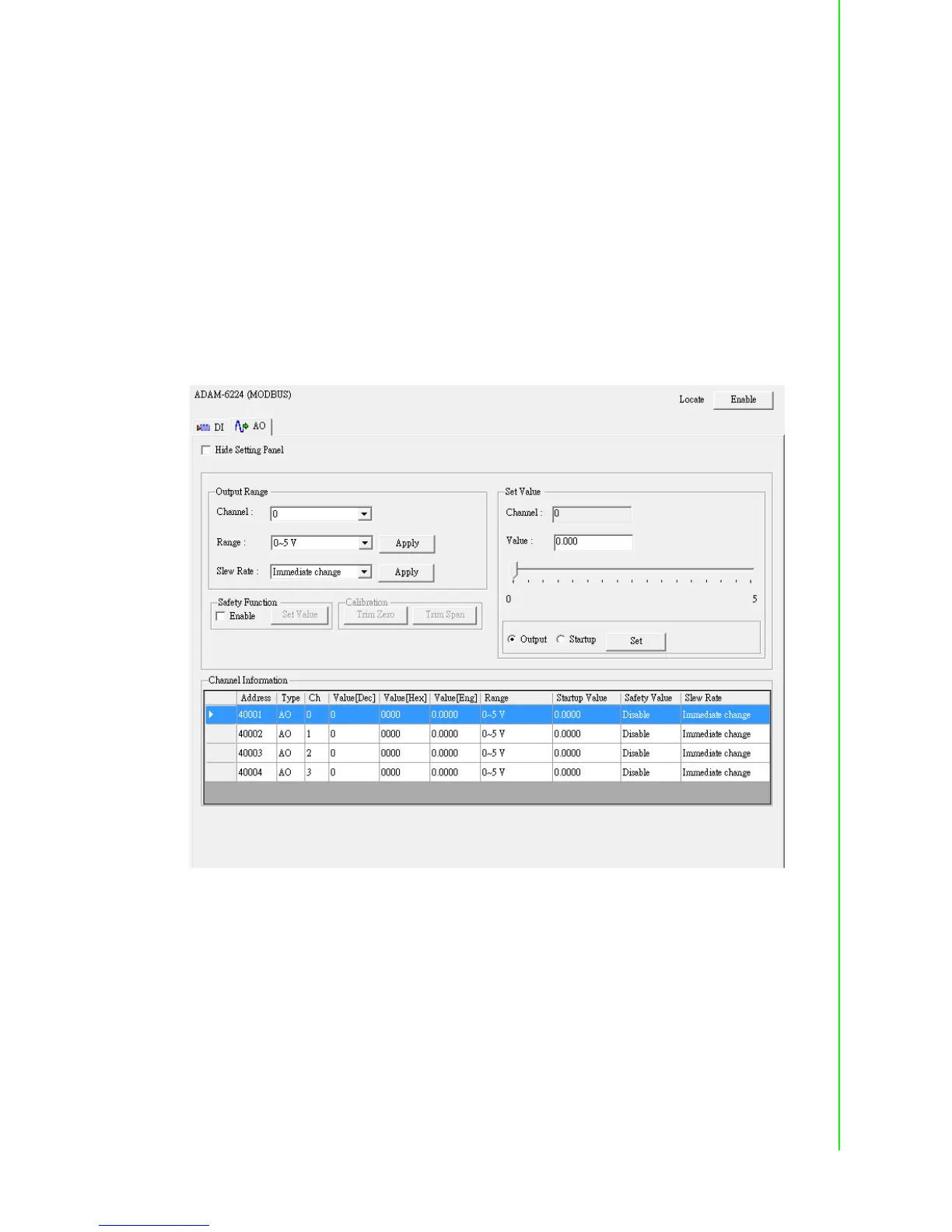

Analog Output Channel Overview
Output Range
You can select input channel and its voltage/current range and click Apply button to
take effect.
To Next Page
