Advantech AIMB-581 User Manual

AIMB-581 User Manual 96

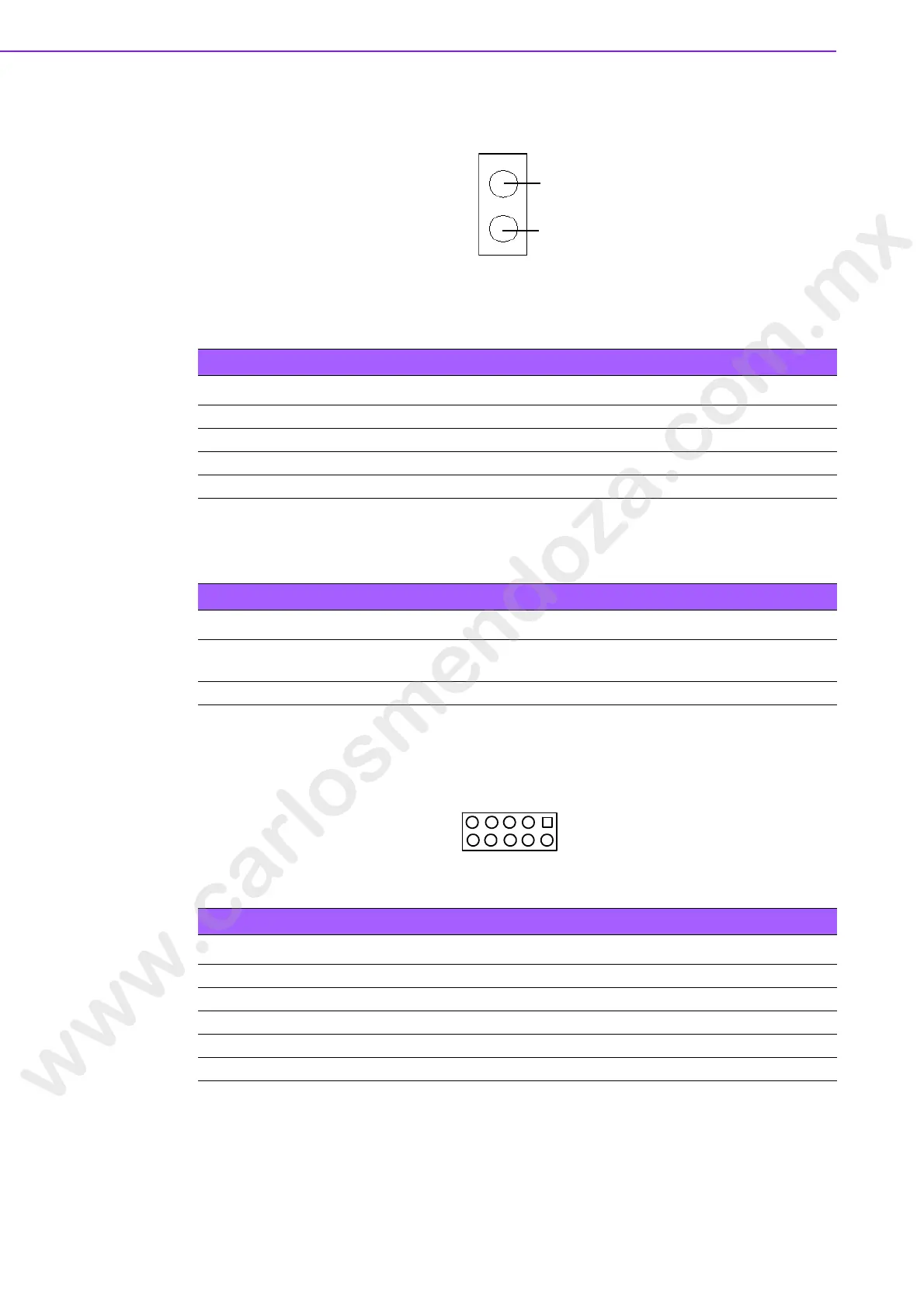

B.12 Line In, Line Out, Mic In Connector (AUDIO1)
B.13 Serial ATA0/1 (SATA1 ~ 6)
B.14 AT/ATX Mode (PSON1)
B.15 HD Audio Interface (FPAUD1)
Line Out
Mic In
Table B.13: Serial ATA 0/1 (SATA1 ~ 6)
Pin Signal Pin Signal
1 GND 2 SATA_0TX+
3 SATA_0TX- 4 GND
5 SATA_0RX- 6 SATA_0RX+
7GND8
Table B.14: AT/ATX Mode (PSON1)
Pin Signal Pin Signal
1
#PSON_SIO
(to super O)
2
#PSON
(to power supply)
3GND
Table B.15: AC-97 Audio Interface (FPAUD1)
Pin Signal Pin Signal
1 MIC2_L 2 GND
3 MIC2_R 4 FP_AUD_DET
5LOUT2_R6SRTN1
7LOUT2_DET8KEY
9 LOUT2_L 10 SRTN2
1 2
9 10
