ARK-1123 User Manual 10
ARK-1123C

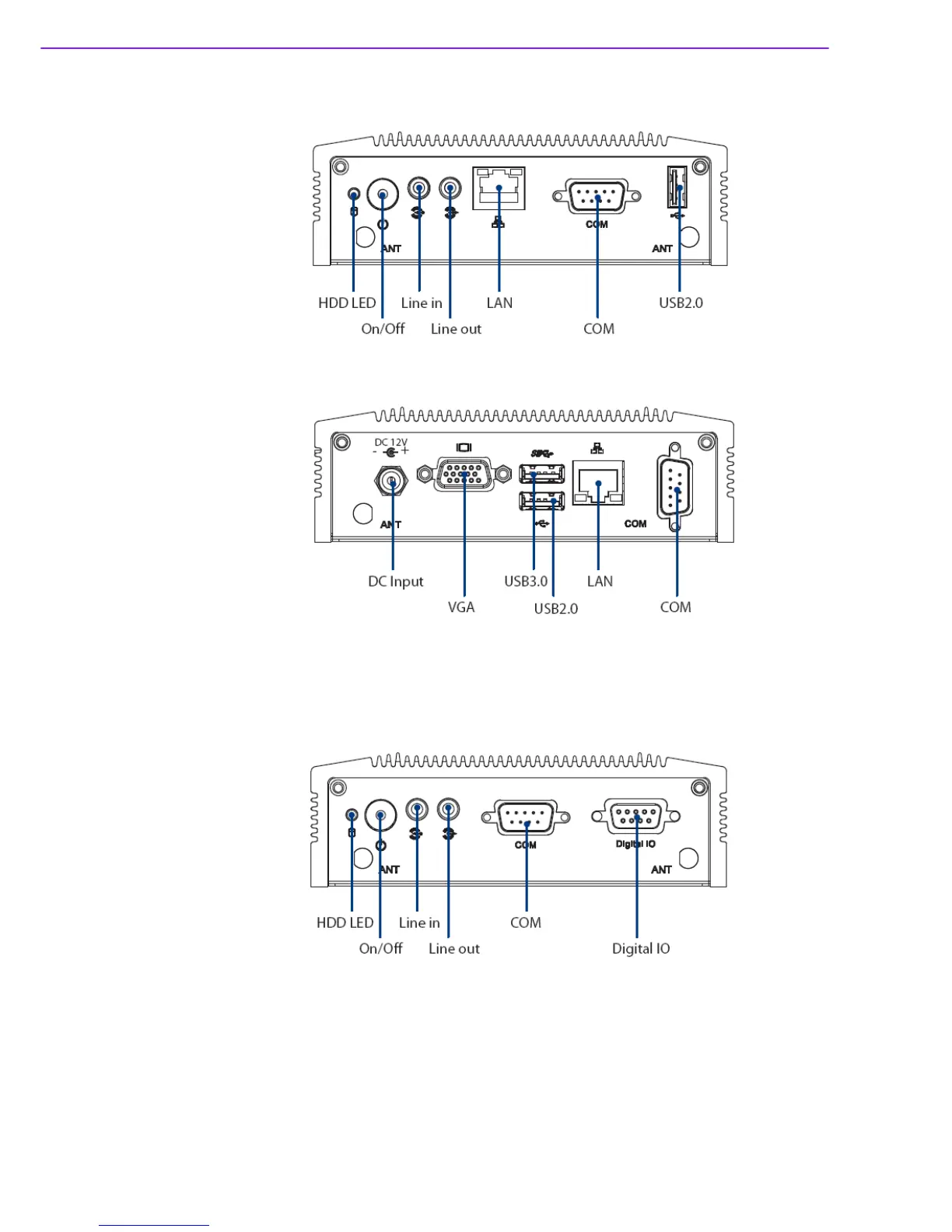

Figure 2.3 ARK-1123C front view
Note: VGA do not support hot plug function due to Intel's constraint
Figure 2.4 ARK-1123C rear view
ARK-1123L
Figure 2.5 ARK-1123C front view
