ARK-1123 User Manual 40

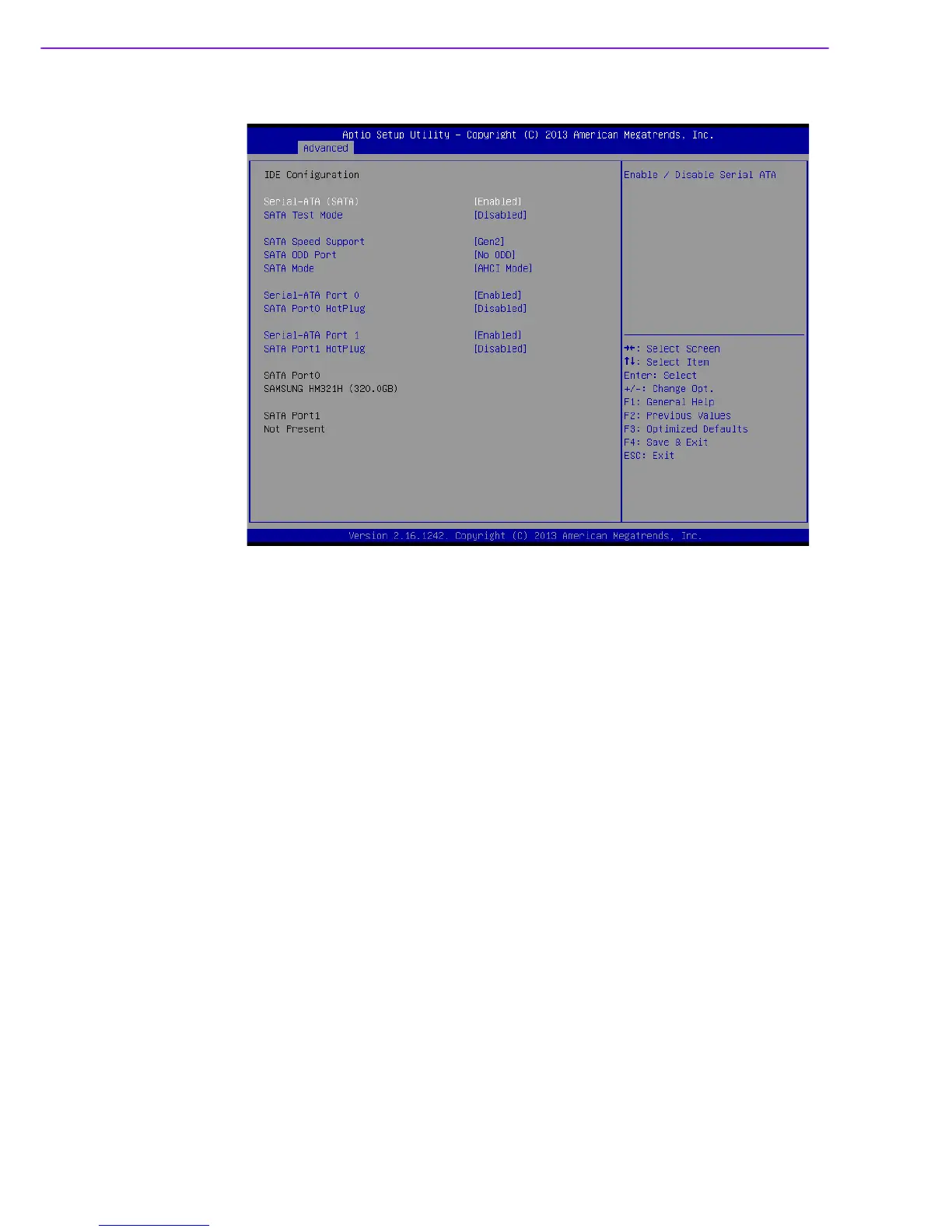

3.2.2.8 IDE Configuration
 Serial-ATA (SATA)
Enable / Disable Serial ATA
 SATA Test Mode
Test Mode Enable / Disable.
 SATA Speed Support
SATA Speed Support Gen1 or Gen2
 SATA ODD Port
SATA ODD is Port0 or Port1
 SATA Mode
Select IDE / AHCI
 Serial-ATA Port 0
Enable / Disable Serial ATA Port 0
