ARK-1123 User Manual 50
3.2.3.5 South Bridge
 SB SATA Configuration
Options for SATA configuration.
 SB USB Configuration
Options for SB USB configuration.
 SB HD Azalia Configuration
Options for SB HD Azalia.
 PCI-E Port
Options for PCI-E devices control.
 Restore on AC Power Loss
This item allows you to select system restore states if AC power loss.

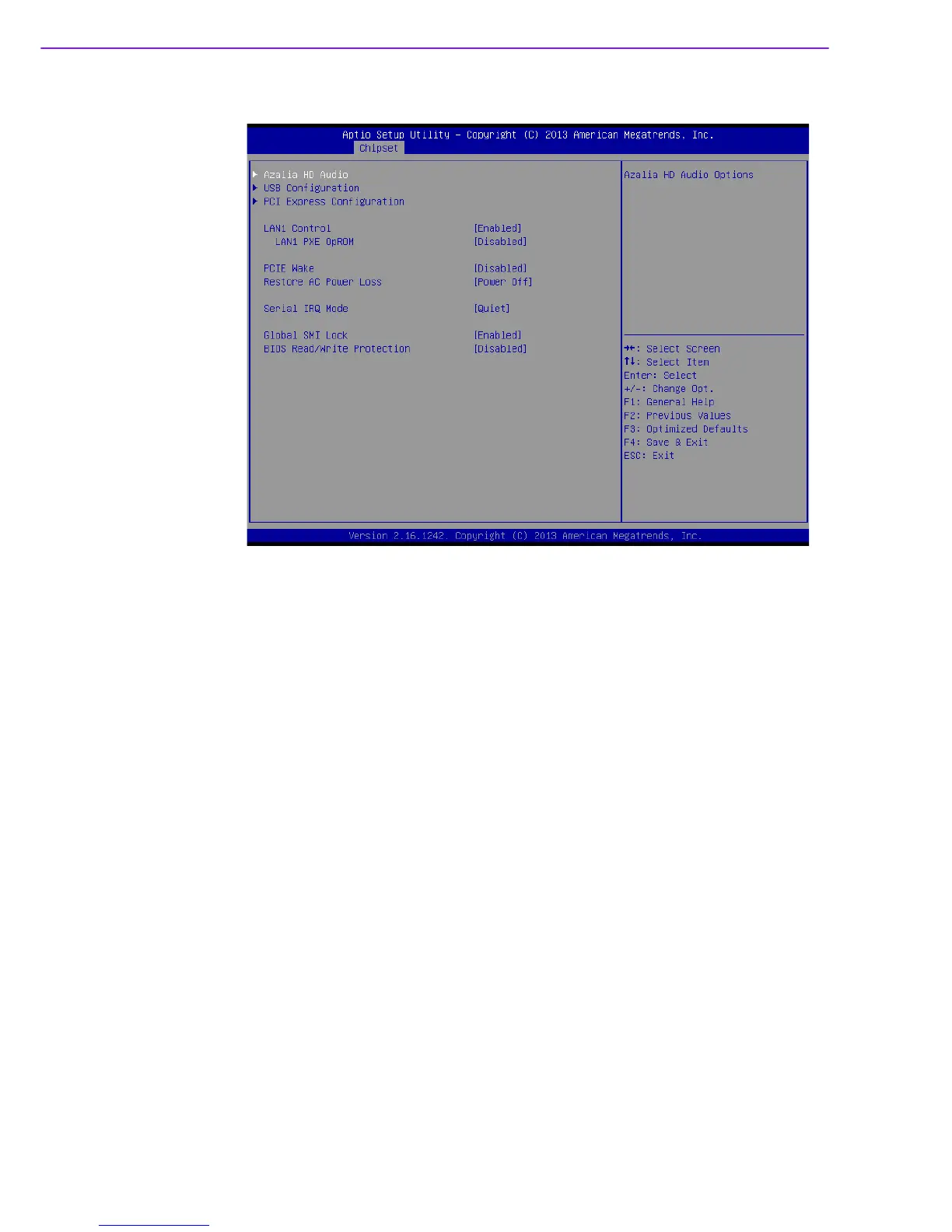

 Azalia HD Audio
Azalia HD Audio Options
 USB Configuration
USB Configuration Settings
 PCI Express Configuration
PCI Express Configuration settings
 LAN1 Control
Enable or Disable the LAN1.
 LAN1 PXE OpROM
Enable or Disable boot option for LAN1 Controller.
 PCIE Wake
Enable or Disable PCIE to wake the system from S5.
 Restore AC Power Loss
Select AC power state when power is re-applied after a power failure.
 Serial IRQ Mode
