9 ARK-1250L User Manual
Chapter 2 H/W Installation
2.2.3 Jumper Location

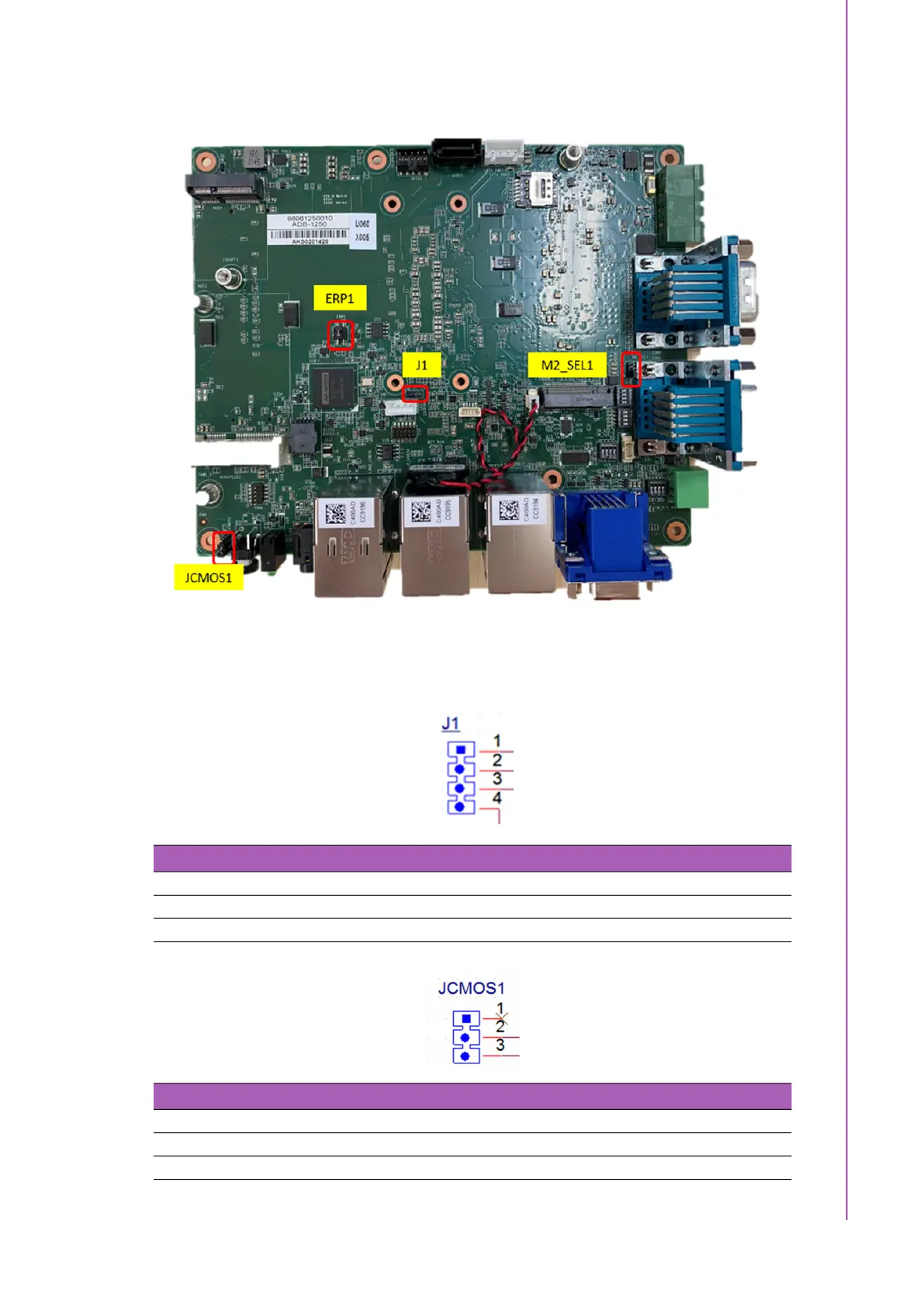

Figure 2.1 Jumper Layout
2.2.4 Jumper Settings
Table 2.2: J1: AT/ATX Mode
PIN Description
1-2 ATX Mode (default)
3-4 AT Mode
Table 2.3: JCMOS1: Clear CMOS
PIN Description
1-2 Normal operation (default)
2-3 Clear CMOS
