Advantech ARK-1250L User Manual

15 ARK-1250L User Manual
Chapter 2 H/W Installation
2.4.8 HDMI Connector
ARK-1250L offers 1 x integrated 19-pin receptacle connector HDMI 2.0b interfaces.
The HDMI link supports resolutions up to 4096x2160 @60 Hz.

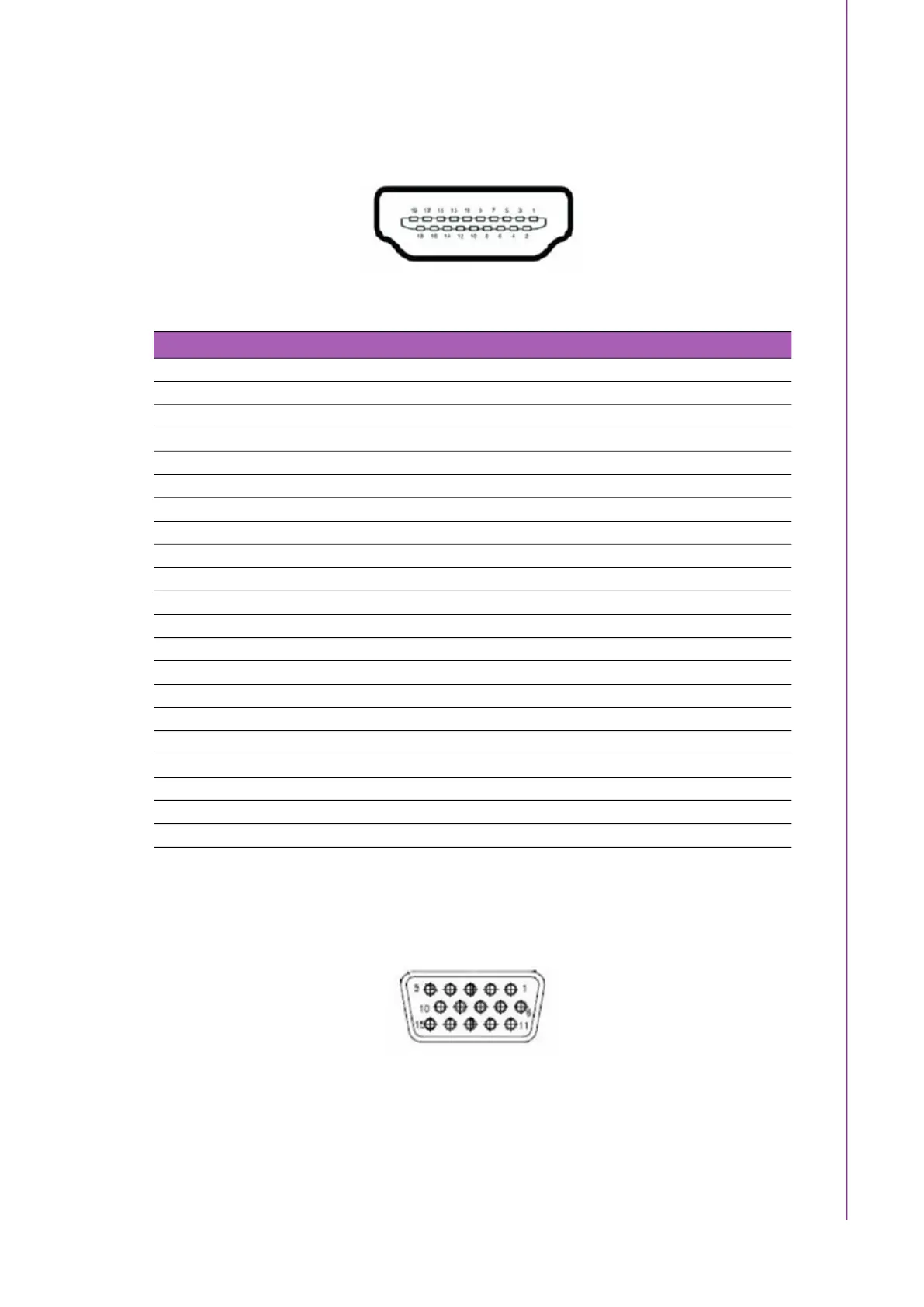

Figure 2.9 HDMI Connector
2.4.9 VGA Connector
ARK-1250L offers 1 x VGA connector. It supports resolutions up to 1920x1080@
60Hz.
Figure 2.10 VGA Connector
Table 2.10: HDMI Connector PIN Definition
Pin Signal Name
1 HDMI_TX2+
2 GND
3 HDMI_TX2-
4 HDMI_TX1+
5 GND
6 HDMI_TX1-
7 HDMI_TX0+
8 GND
9 HDMI_TX0-
10 HDMI_CLK+
11 GND
12 HDMI_CLK-
13 NC
14 NC
15 HDMI_DCLK
16 HDMI_DDAT
17 GND
18 +V5_HDMI-HPD
19 DDP0_HPD
NC represents “No Connection”
