21 ARK-1250L User Manual
Chapter 2 H/W Installation

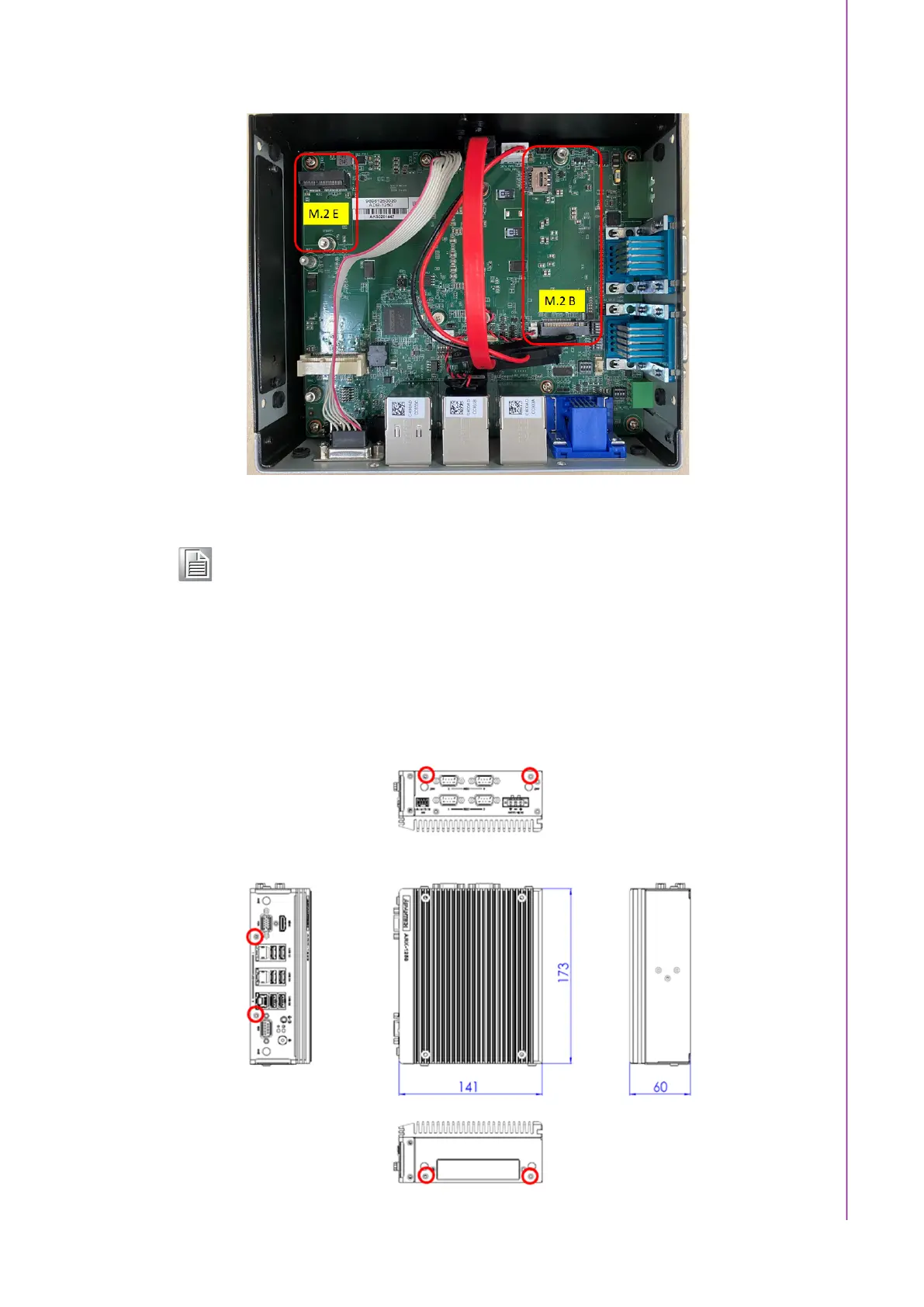

2. Install the M.2 E/B key module.
3. Put the bottom cover back and secure it with the 6 x screws.
2.5.5 AMO-I032 Installation
AMO-I032 is the expansion kit (M.2 B key to mPCIe) for installing iDoor modules on
ARK-1250L. Users need to install the AMO-I032 together with the iDoor module.
1. Loosen the 6 x screws on the front/side and remove the bottom cover.
2. Install the AMO-I032 on M.2 B key and secure it with a screw (M3x5L).
Note! The extra thermal solution may be required for certain modules installed
on M.2.
