ARK-1250L User Manual 26

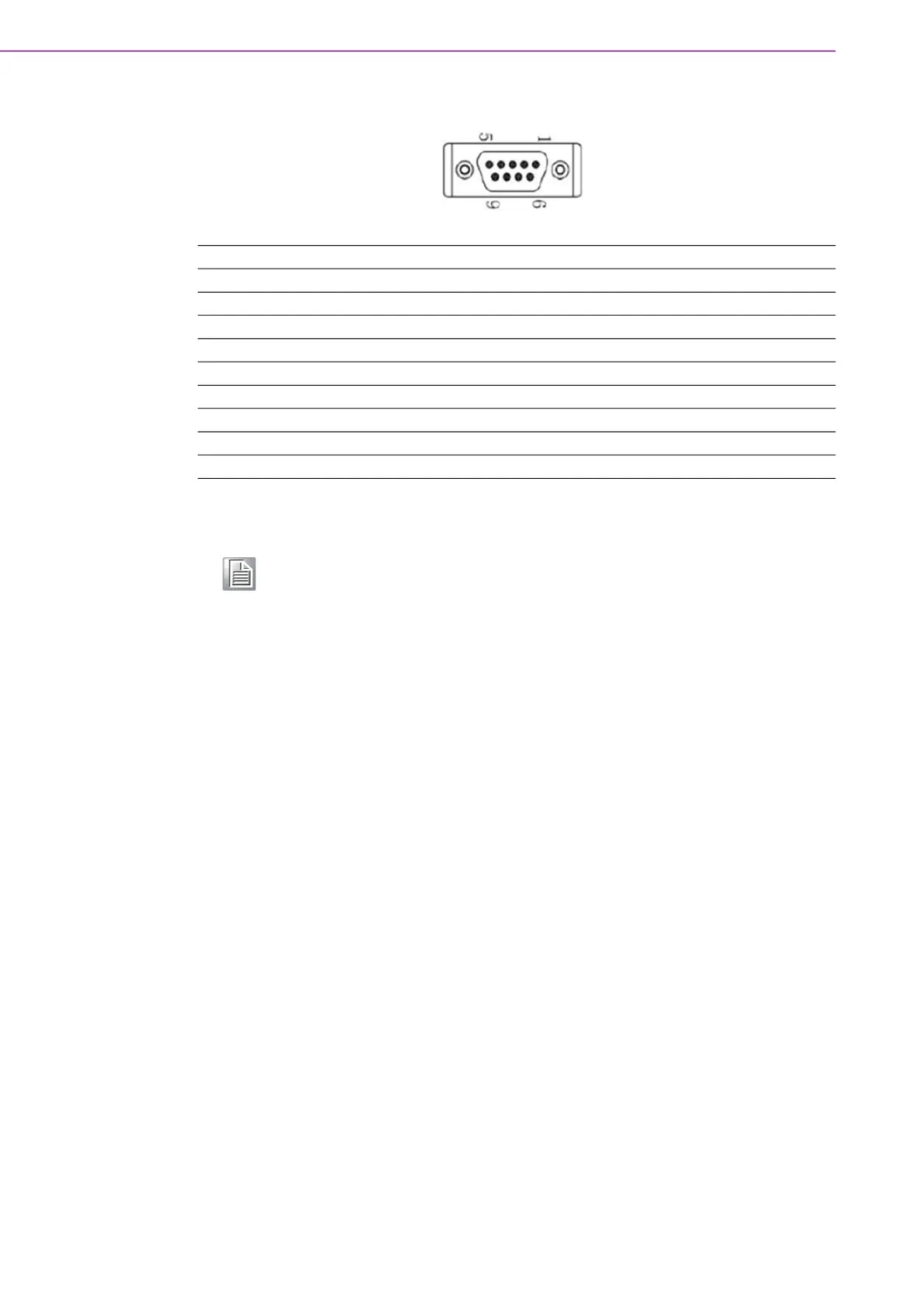

4. CANbus cable Pin Definition are shown below.
Pin Signal Name
1 NC
2 CAN_L
3 GND
4 NC
5 NC
6 NC
7 CAN_H
8 NC
9 NC
Note! Please update BIOS to Advantech part number "1420056685" when
using CANBus.
