ECU-1251 Series User Manual 10

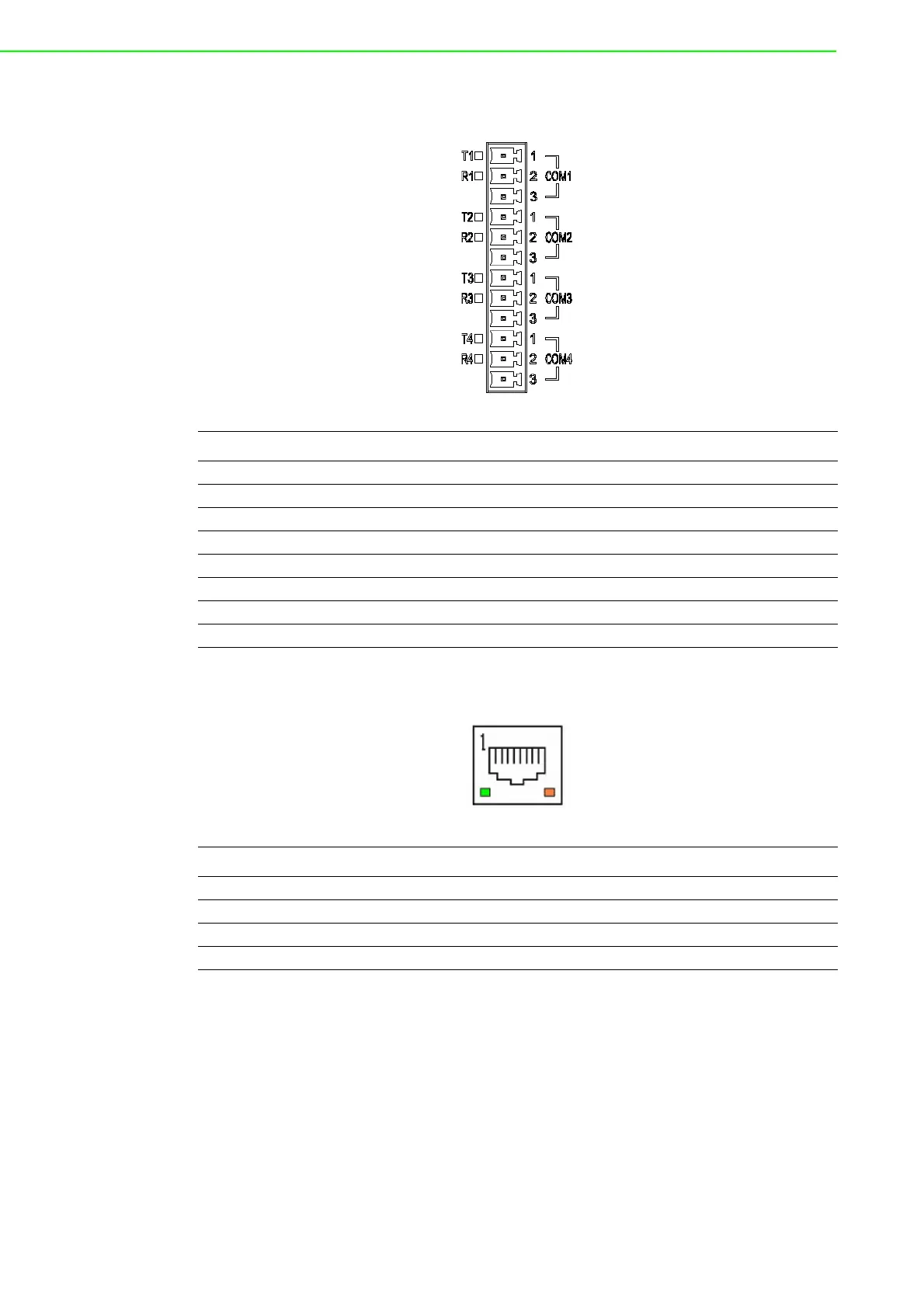

2.2.2 Serial Communication Status Indicator

2.2.3 Ethernet Status Indicator

LED Color Description

TX1 Orange Blinking, Serial port 1 data being transmitted

RX1 Green Blinking, Serial port 1 data being received

TX2 Orange Blinking, Serial port 2 data being transmitted

RX2 Green Blinking, Serial port 2 data being received

TX3 Orange Blinking, Serial port 3 data being transmitted

RX3 Green Blinking, Serial port 3 data being received

TX4 Orange Blinking, Serial port 4 data being transmitted

RX4 Green Blinking, Serial port 4 data being received

LED Color Description

Link1 Yellow Lighting, Ethernet not connected

Act1 Green Blinking, Ethernet data being transmitted

Link2 Yellow Lighting, Ethernet not connected

Act2 Green Blinking, Ethernet data being transmitted
