ECU-1251 Series User Manu
al
Chapter 3
Wiring
and
Installation
3.3.3
Inst

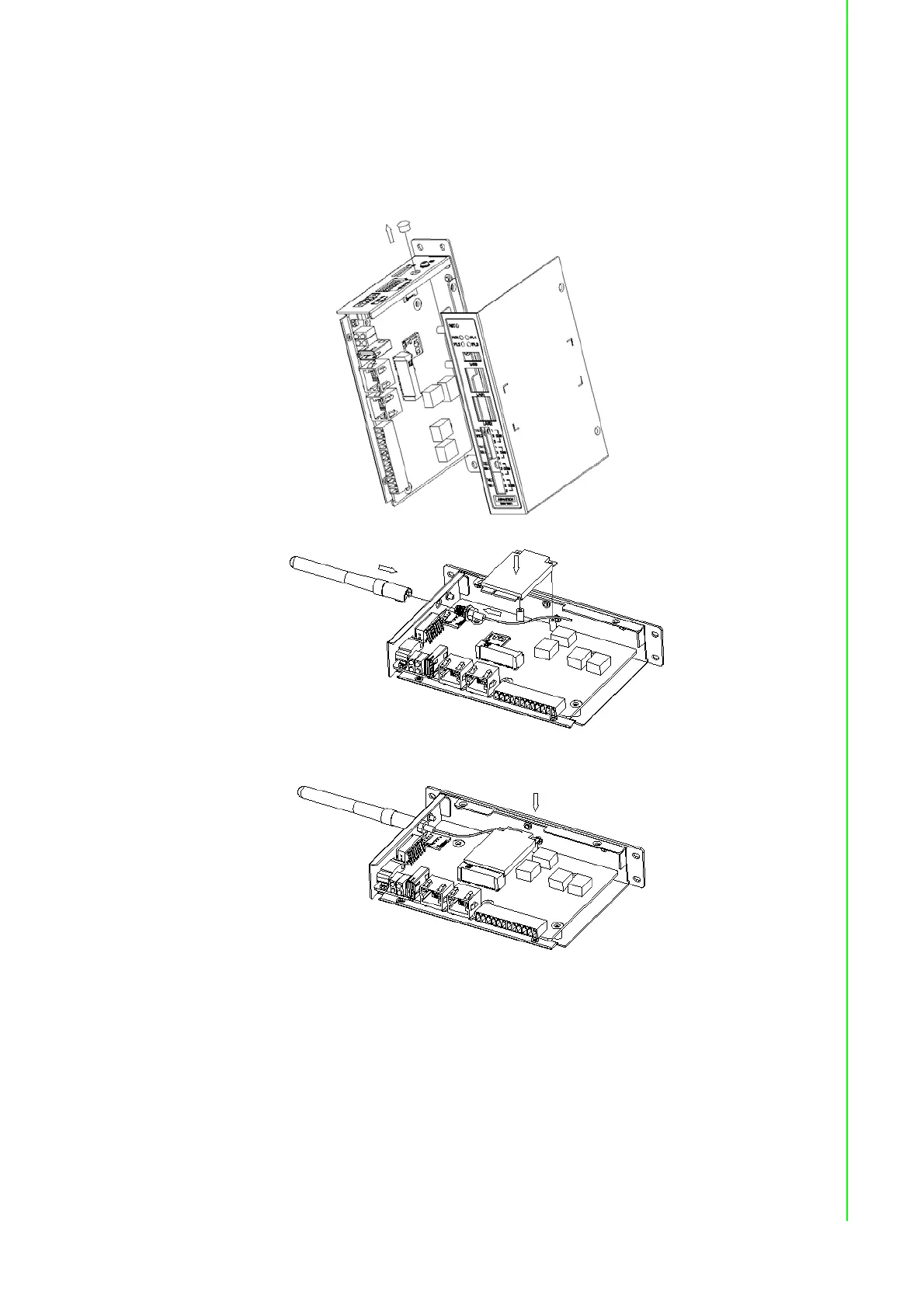

alling a Wireless module
Card and Antenna (Optional)
For optional wireless module card
and antenna, please cont
act Advantech for t
he fol-
lowing wireless solution kit.
T
op panel with pre
-cut antenna holes
24
