Advantech IPC-610-H User Manual

Momentary Switch: Use this switch and by way of ATX (PS_ON)
function to turn on system power. Please use system shutdown to turn off
system power automatic or press momentary switch for a while to turn
off system power
USB connector: If you have any USB interface device want to connect
with system, you could use this connector.
PS/2 connector: If you want to connect PS/2 keyboard, you could use
this connector.

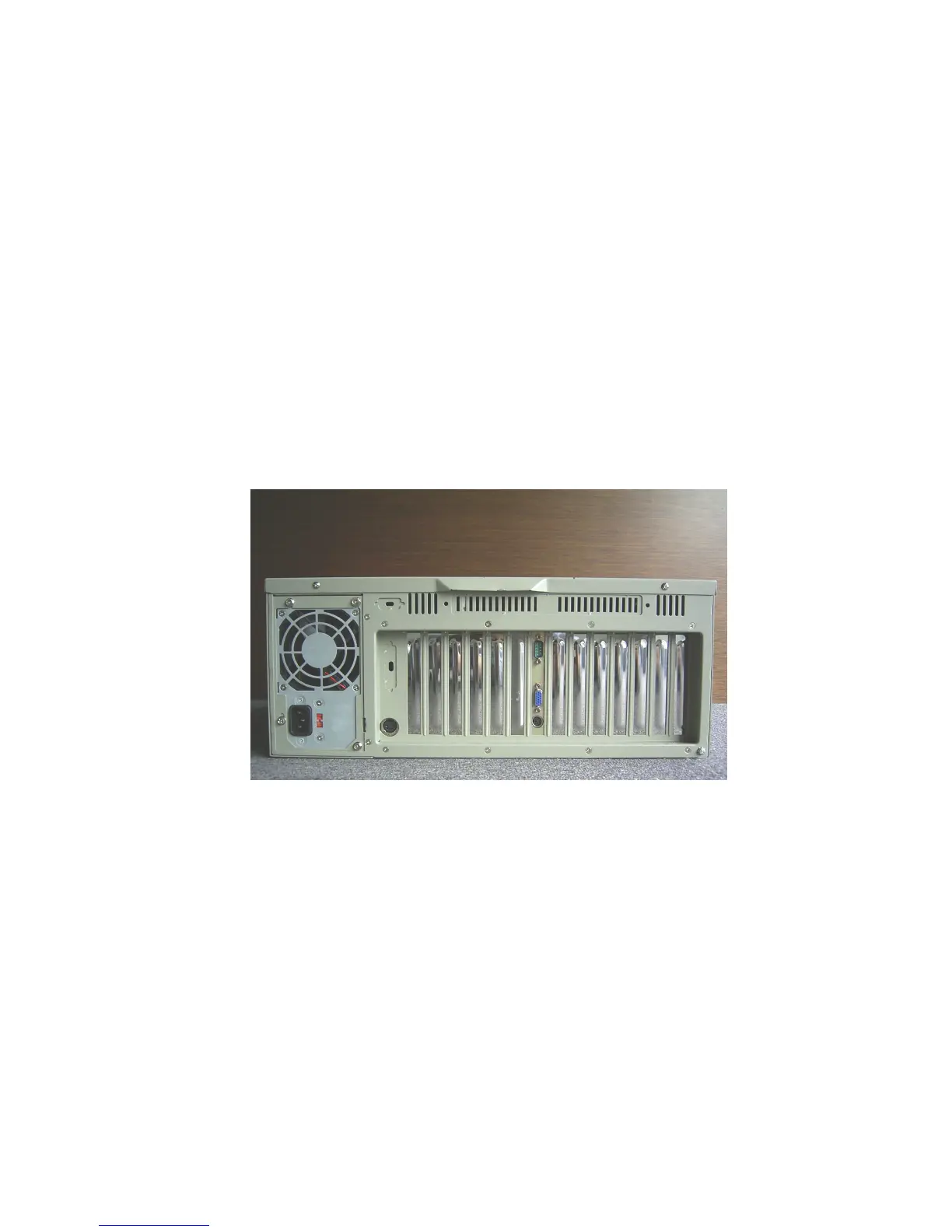

The rear section of B/P version includes B/P rear window. The rear
14-slot I/O brackets and the sheet metal kit for section of M/B version
includes M/B rear window, 7-slot I/O brackets, ATX M/B I/O cover.
Figure 2-3
2.1.4 Drive Bay Installation
The Standard Drive Bay of the IPC-610-H can hold 5.25” x 3 and 3.5” x
1 devices
IPC-610-H User's Manual
10
