Advantech IPC-610-H User Manual

Installation disk drives
1. Remove the top cover
2. Undo the four screws of cushion and four screws fixing the
Standard Drive Bay on right side

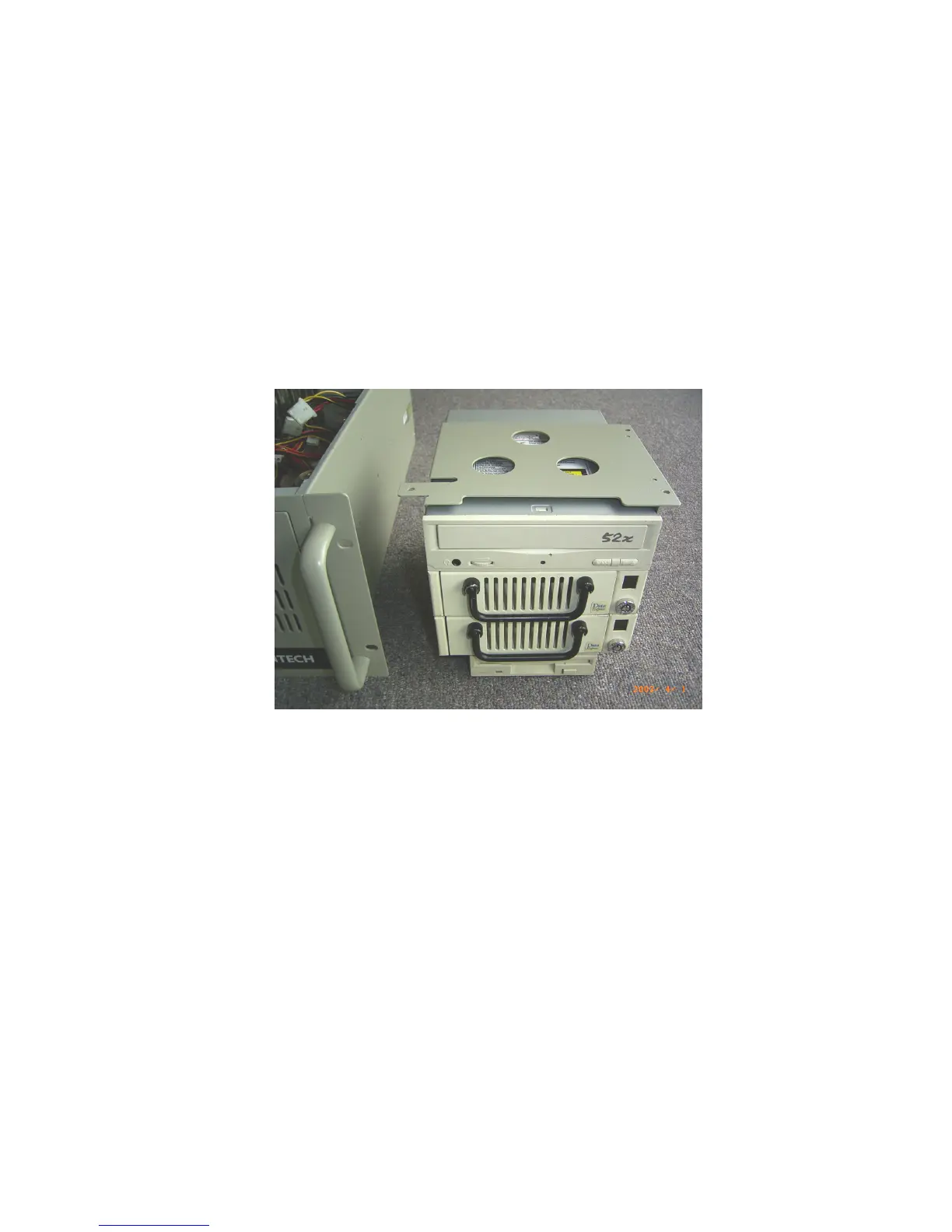

3. Lift off the Standard Drive Bay. See Figure 2-4
4. Insert the drives into their proper locations in the drive bay and
secure them with the screws provided.
5. Connect the disk drive power and signal cables.
Figure 2-4
11
