CNC operations
10
Advantech-LNC Technology Co., Ltd.

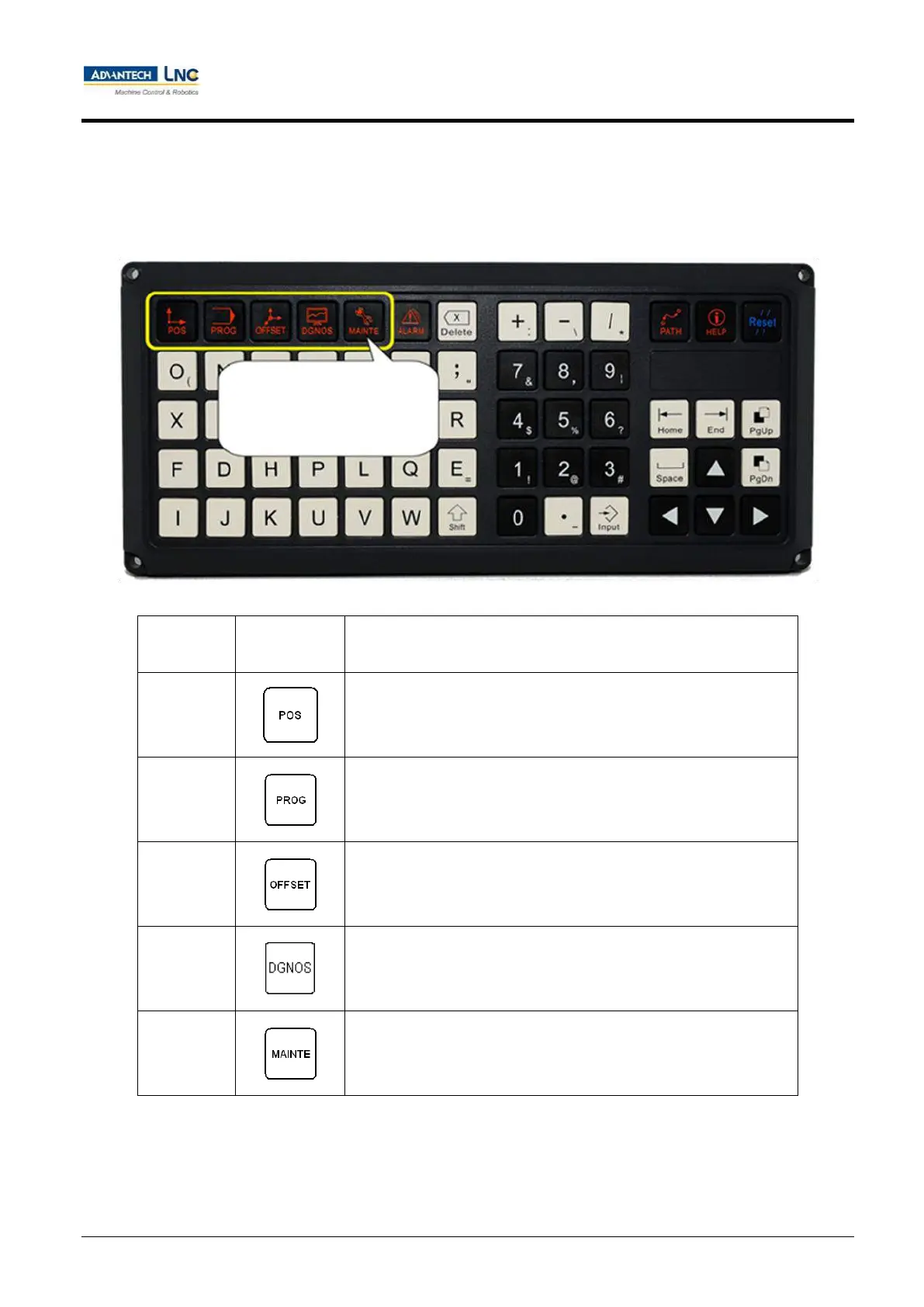

Keys shown on the MDI panel:
A. CNC function group keys:
Name
Function group
key
Description
Monitoring
group
The group of screens showing various coordinates and machining data.
Program
group
All screens related to program information (in coordination with 1.
Editing mode, 2. Memory mode, 3. Manual mode).
Compensation
group
Sets the tool offset.
Diagnosis
group
Shows real time information from the diagnosis screen.
Maintenance
group
System related settings.
CNC function group key
