Description of relevant keys:
 Sign-in: After editing is completed, users can press the 【Sign-in】 key before pressing the program start (CYCLE
START) key to begin execution.
 Clear: Press the 【Clear】 key to clear all commands on the editing page.
 Copy all: Press the 【Copy all】 key to copy all commands currently on the editing page.
 Paste: Press the 【Paste】 key to paste the copied command.
 Delete row: Press the 【Delete row】 key to delete the command row where the cursor is currently located.
 For detailed instructions, please refer to section 1.8 for instructions on Using MDI Functions
1.3.9 Figures

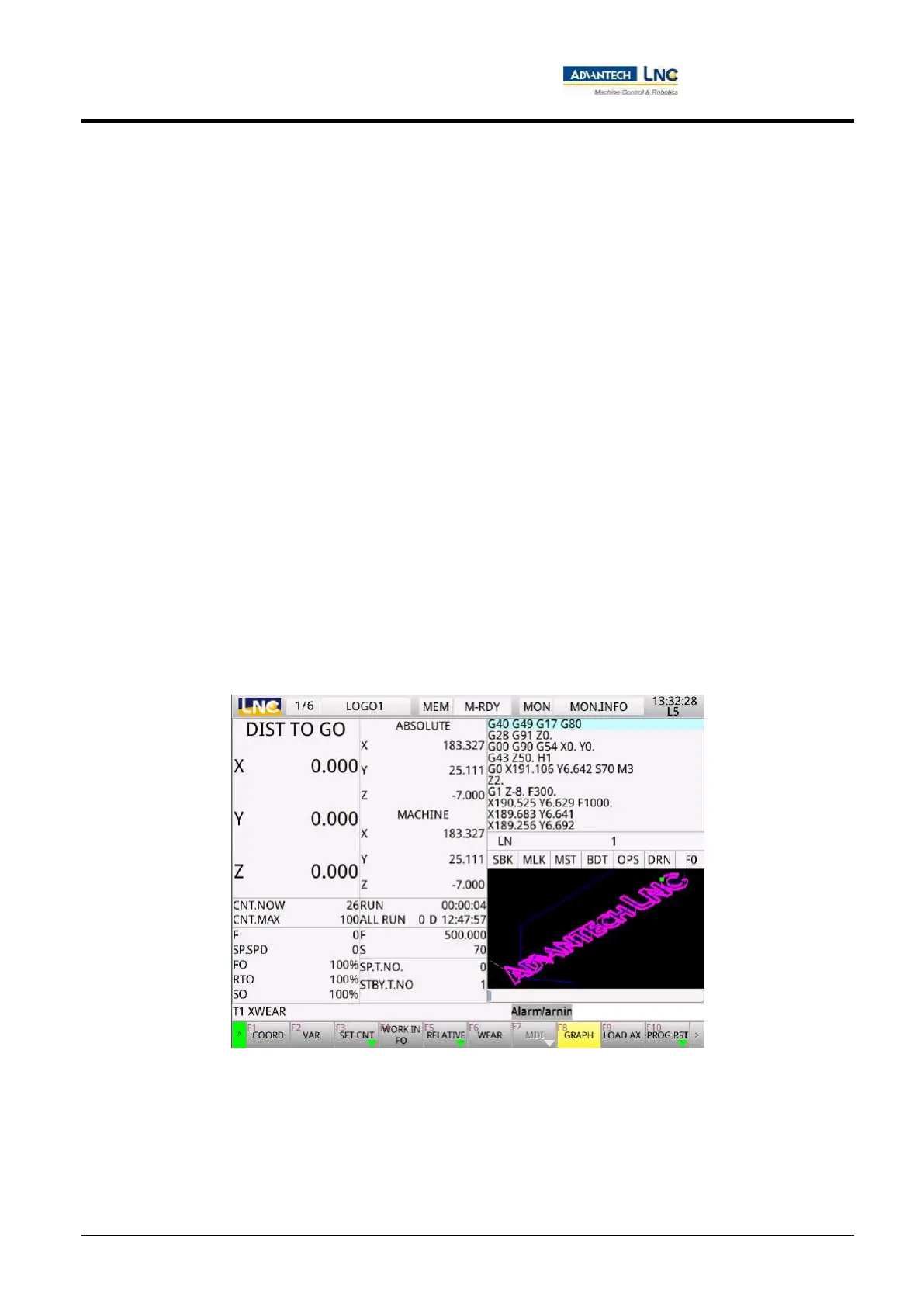

Description of figures:
 It is for users to view the current machining program's path on the monitoring page.
Instructions on how to use figures:
 Users can use the <POS> key on the MDI panel to switch to monitoring group, then press the 【Figures】 key to
show the current machining program's path.
