Advantech LNC M6800 Series - Page 169

Milling Machine Series
CNC operations
164
Advantech-LNC Technology Co., Ltd.

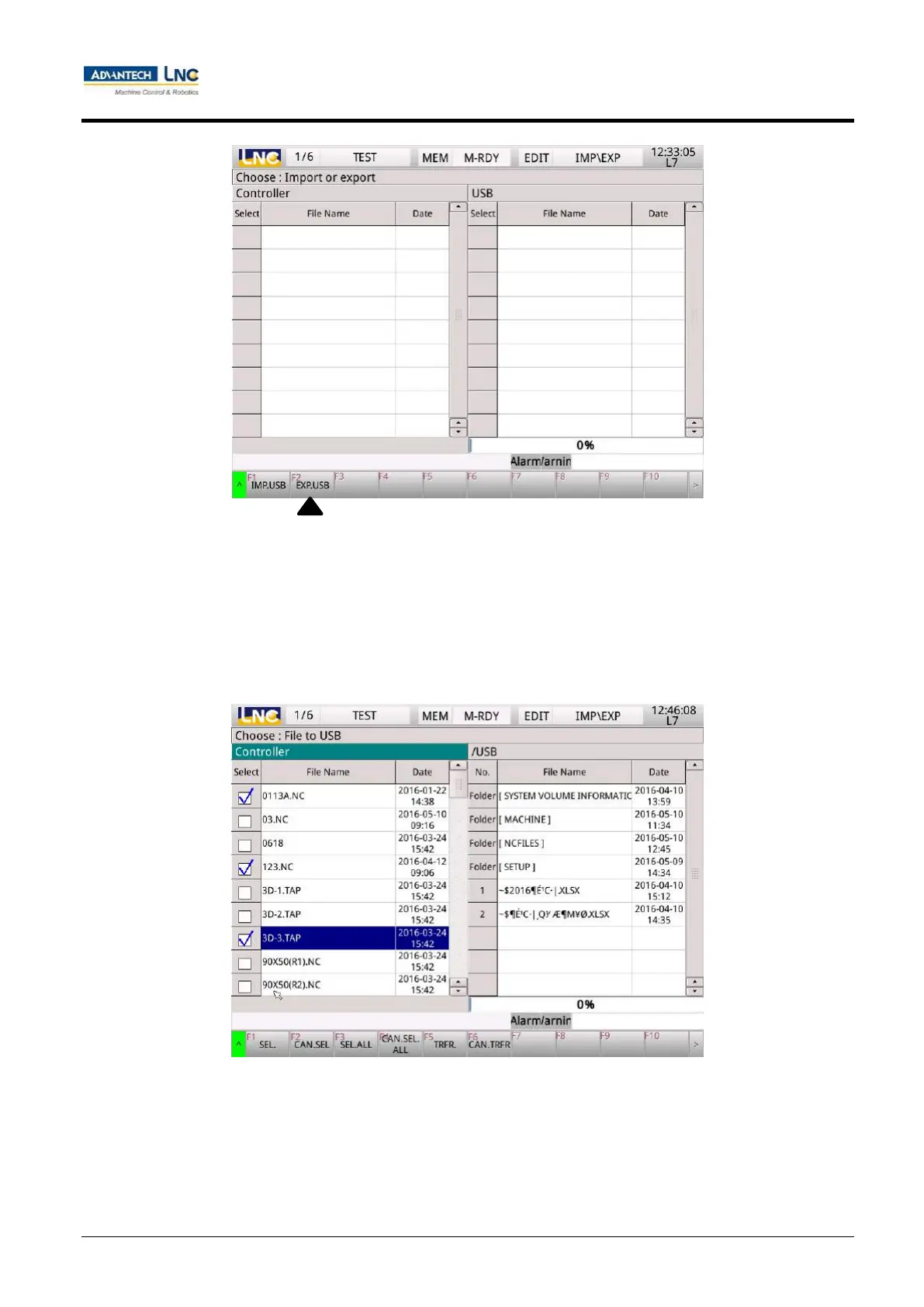

 Arrow keys on the MDI panel should be used to move the cursor to select the file to be exported, pressing the
【Select】 key and the selected file will be checked (as shown in the figure below). Or the 【Cancel select】 key
can be pressed to cancel the selection. In addition, the 【Select all】 key can be pressed to directly export all
files.
 After pressing the 【Transfer】 key on the human machine page, a window for directory selection will appear.
