Advantech LNC M6800 Series - Page 174

Milling Machine Series
CNC operations
169
Advantech-LNC Technology Co., Ltd.

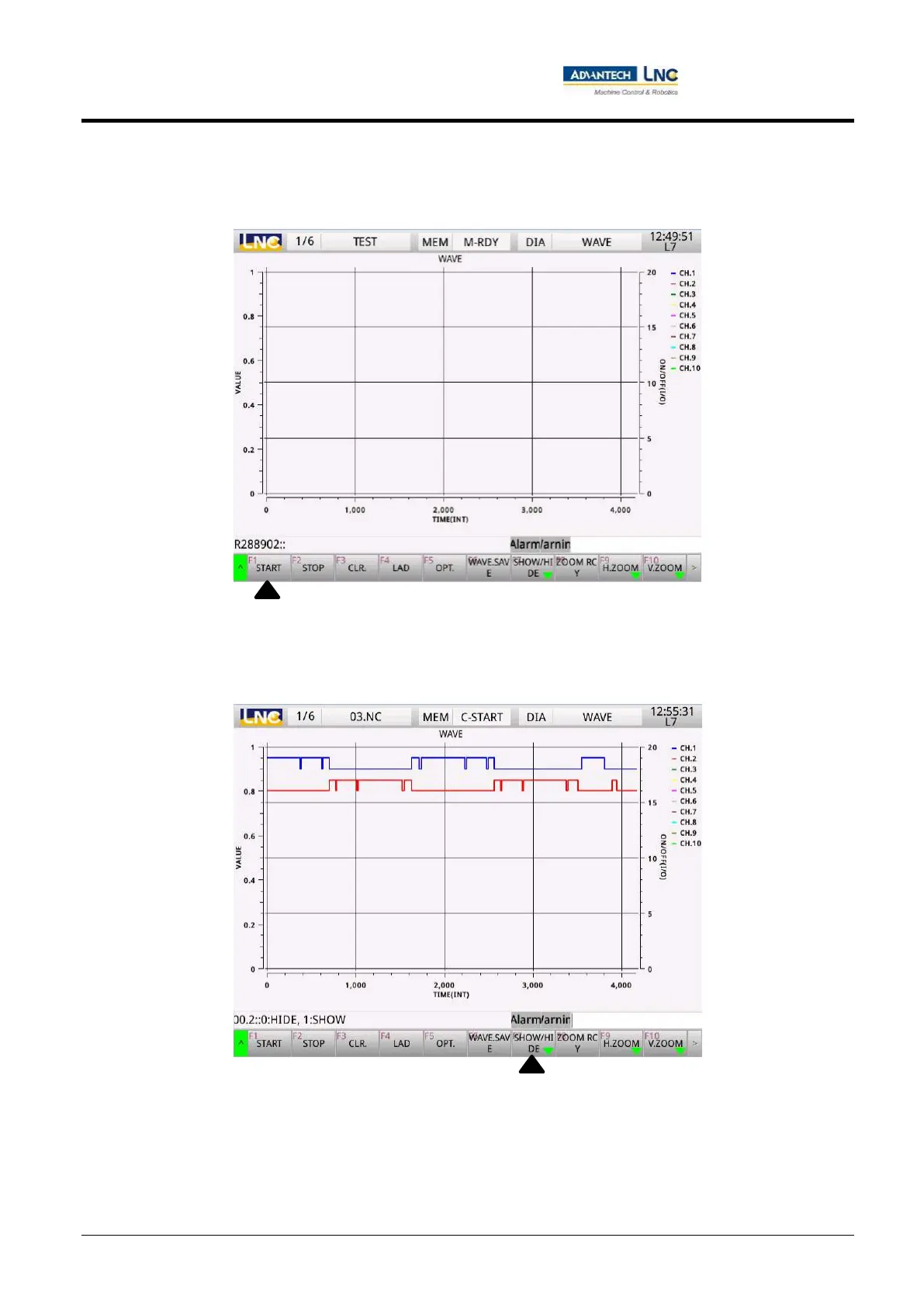

 Press the 【Start】 key to monitor the waveform; press the 【Stop】 key to stop at the current screen; press the
【Clear】 key to clear the waveform.
 To hide the waveform of channel 2, the 【Display/hide】 key can be pressed to access channel selection.
