45 MIO-5251 User Manual
Appendix A Pin Assignments

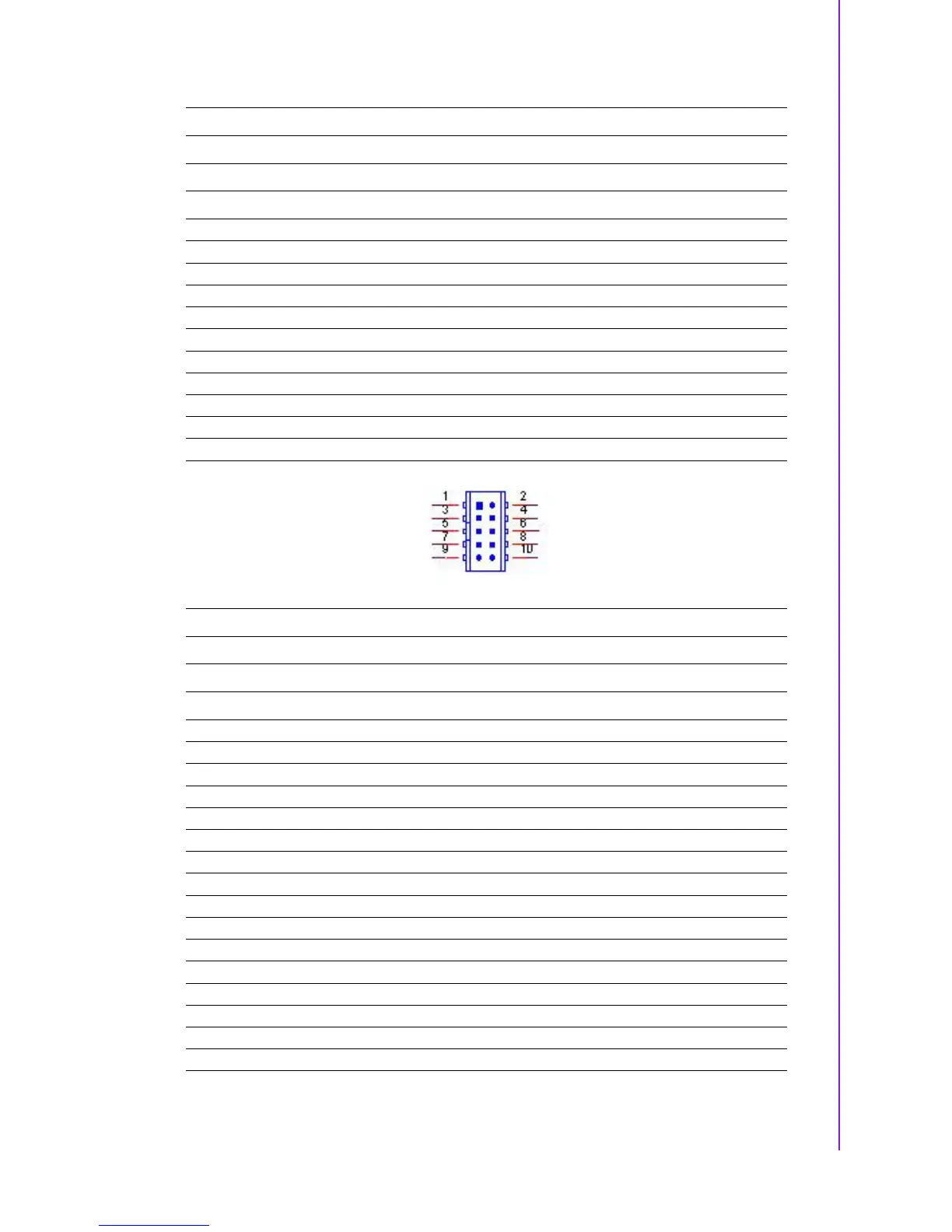

CN10 GPIO
Part Number 1653004099
Footprint HD_5x2P_79_23N685B-10M10
Description BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10
Pin Pin Name
1+5V
2GPIO4
3GPIO0
4GPIO5
5GPIO1
6GPIO6
7GPIO2
8GPIO7
9GPIO3
10 GND
CN11 VGA
Part Number 1654000055
Footprint DBVGA-VF5MS
Description D-SUB Conn. 15P 90D(F) DIP 070242FR015S200ZU
Pin Pin Name
1RED
2GREEN
3BLUE
4NC
5GND
6GND
7GND
8GND
9NC
10 GND
11 NC
12 DDAT
13 HSYNC
14 VSYNC
15 DCLK
