MIO-5251 User Manual 46

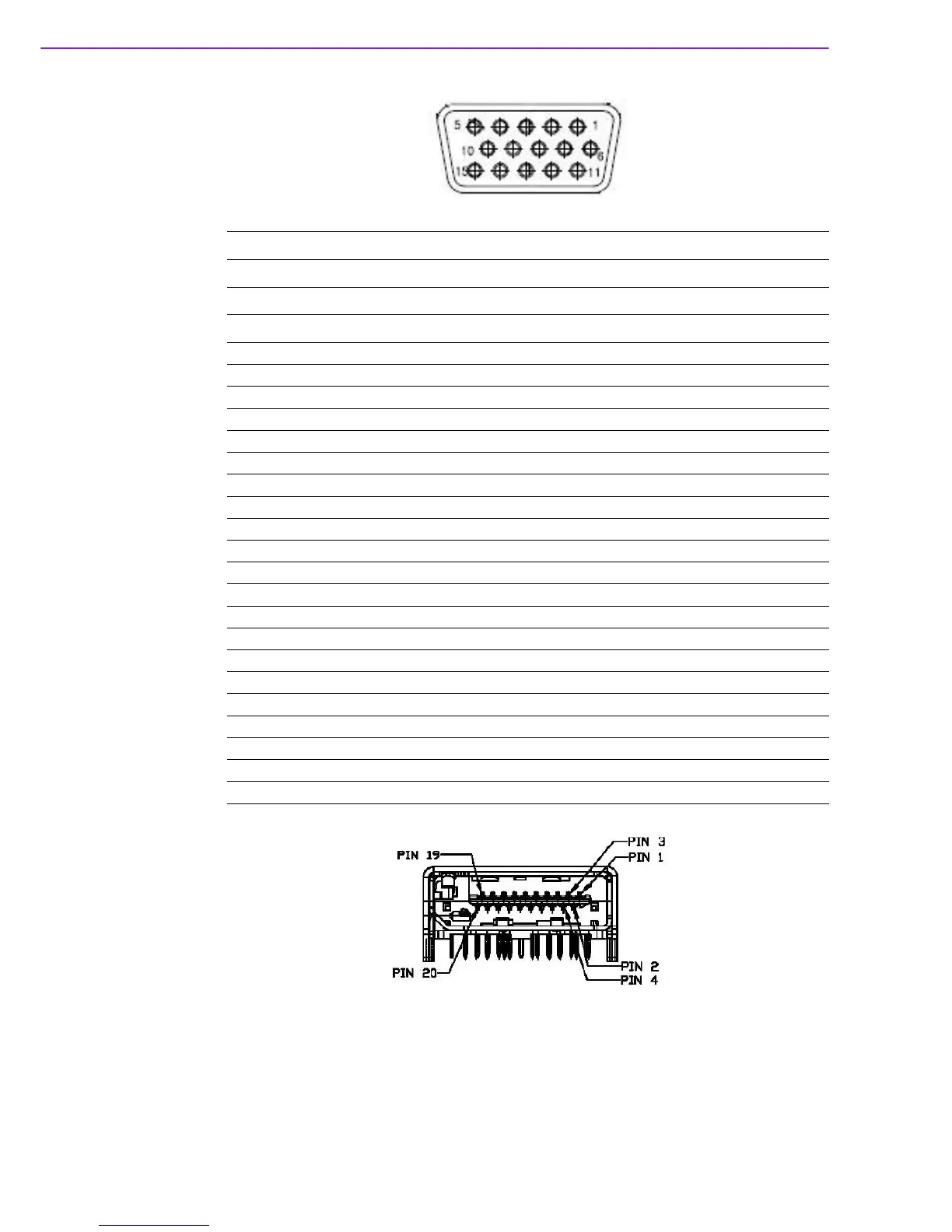

CN12 HDMI/DP
Part Number 1654010203
Footprint HDMICON_21P_845-002-217CRL
Description HDMI+DISPLAY Conn. 20P 90D(M) DIP 845-002-217CRL
Pin Pin Name
1 ML_Lane0(p)/TMDS Data2+
2 GND/TMDS Data2 Shield
3 ML_Lane0(n)/TMDS Data2–
4 ML_Lane1(p)/TMDS Data1+
5 GND/TMDS Data1 Shield
6 ML_Lane1(n)/TMDS Data1–
7 ML_Lane2(p)/TMDS Data0+
8 GND/TMDS Data0 Shield
9 ML_Lane2(n)/TMDS Data0–
10 ML_Lane3(p)/TMDS Clock+
11 GND/TMDS Clock Shield
12 ML_Lane3(n)/TMDS Clock–
13 CONFIG1/Reserved
14 CONFIG2/Reserved
15 AUX CH(p)/SCL
16 GND/SDA
17 AUX CH(n)/DDC Ground
18 Hot Plug Detect/+5V Power
19 GND/Hot Plug Detect
20 +3.3V
