47 MIO-5251 User Manual
Appendix A Pin Assignments

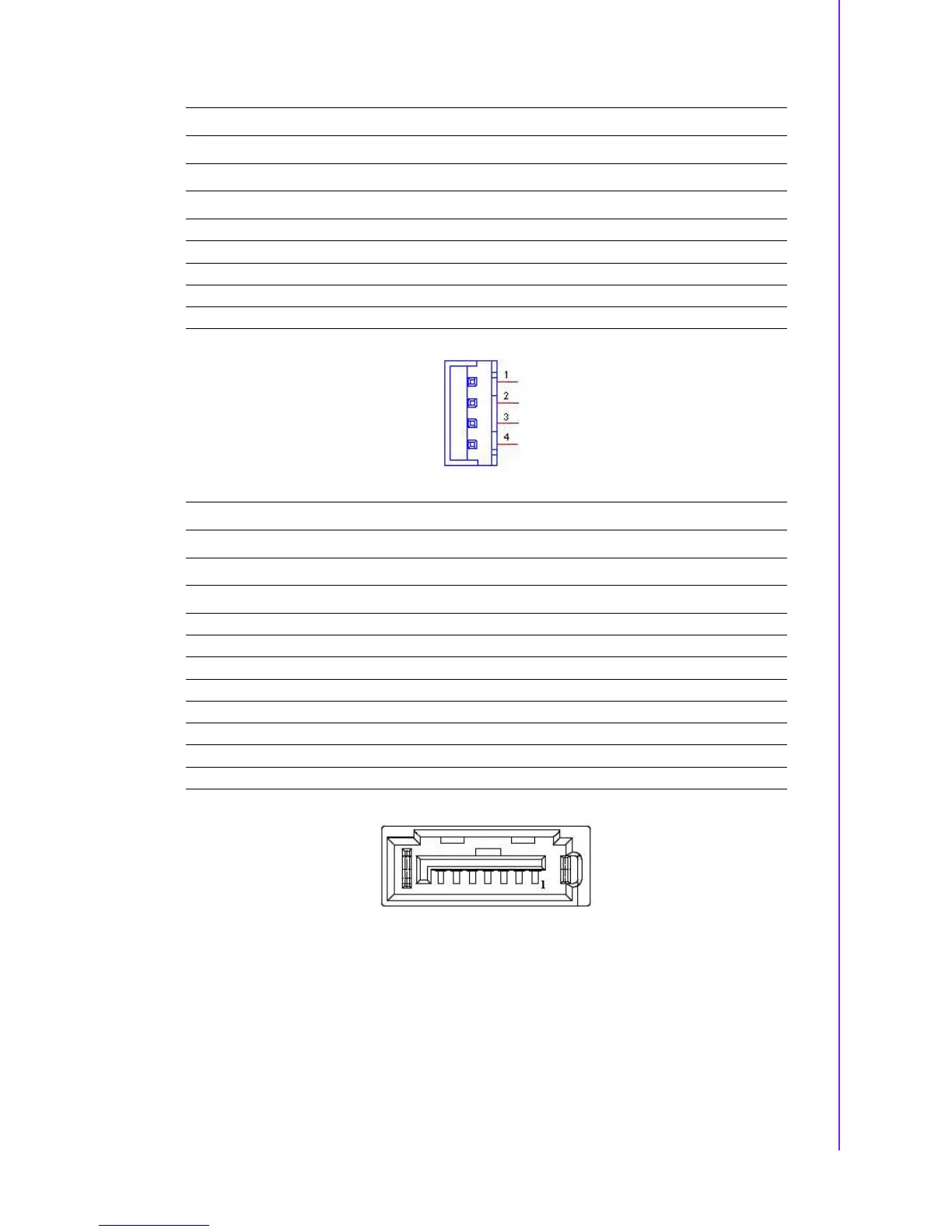

CN13 SATA Power
Part Number 1655001154
Footprint WF_4P_98_BOX_R1_D
Description WAFER BOX 4P 2.50mm 180D(M) DIP 24W1170-04S10-01
Pin Pin Name
1+5V
2GND
3GND
4+12V
CN14 SATA
Part Number 1654007578
Footprint SATA_7P_WATF-07DBN6SB1U
Description Serial ATA 7P 1.27mm 180D(M) SMD WATF-07DBN6SB1U
Pin Pin Name
1GND
2TX+
3TX-
4GND
5RX-
6RX+
7GND
