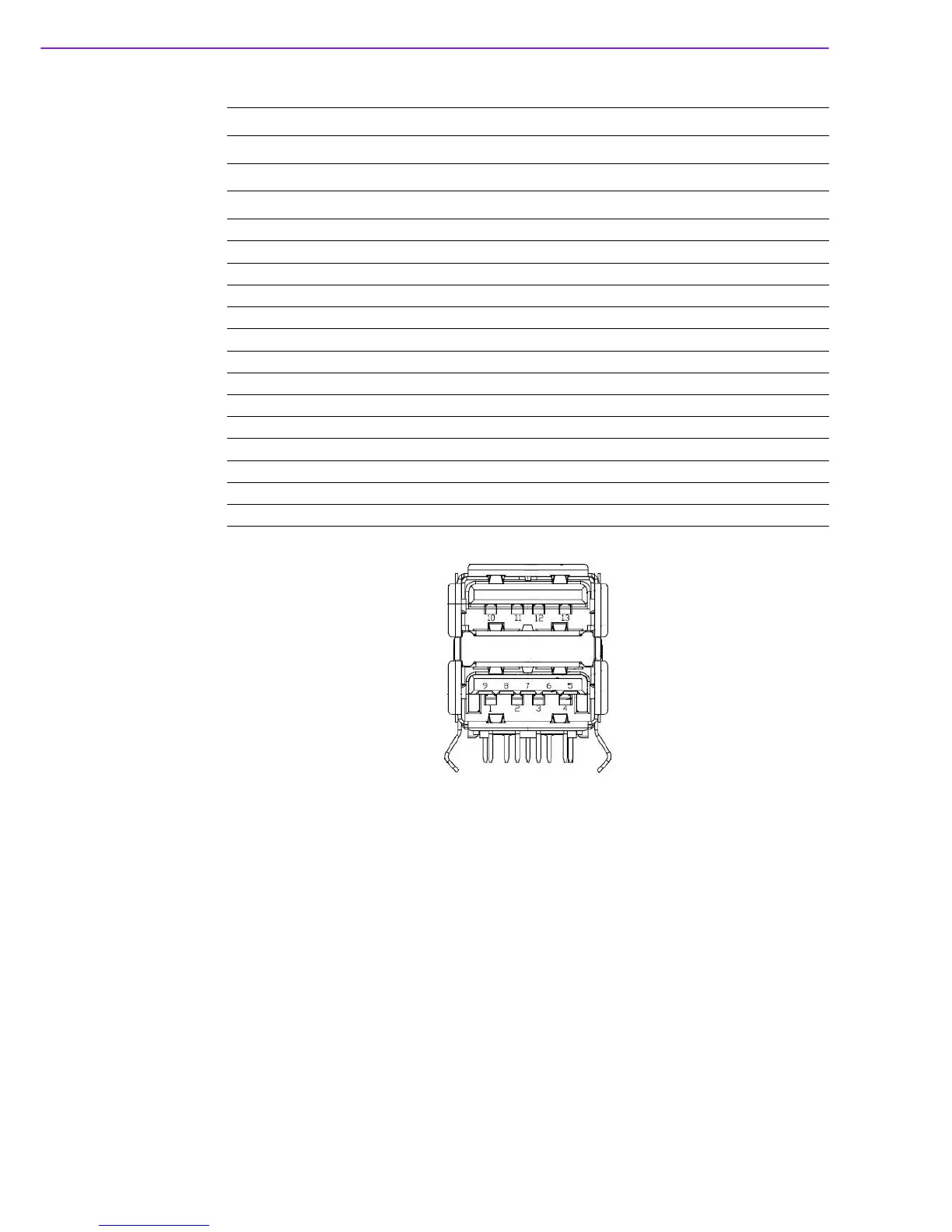

CN19 External USB2.0+USB3.0
Part Number 1654010199
Footprint USB_13P_UEA1112C-UHS6-4F
Description USB Conn. 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4
Pin Pin Name
1+5V
2D-
3D+
4GND
5 SSRX-
6 SSRX+
7GND
8 SSTX-
9 SSTX+
10 +5V
11 D-
12 D+
13 GND
