51 MIO-5251 User Manual
Appendix A Pin Assignments

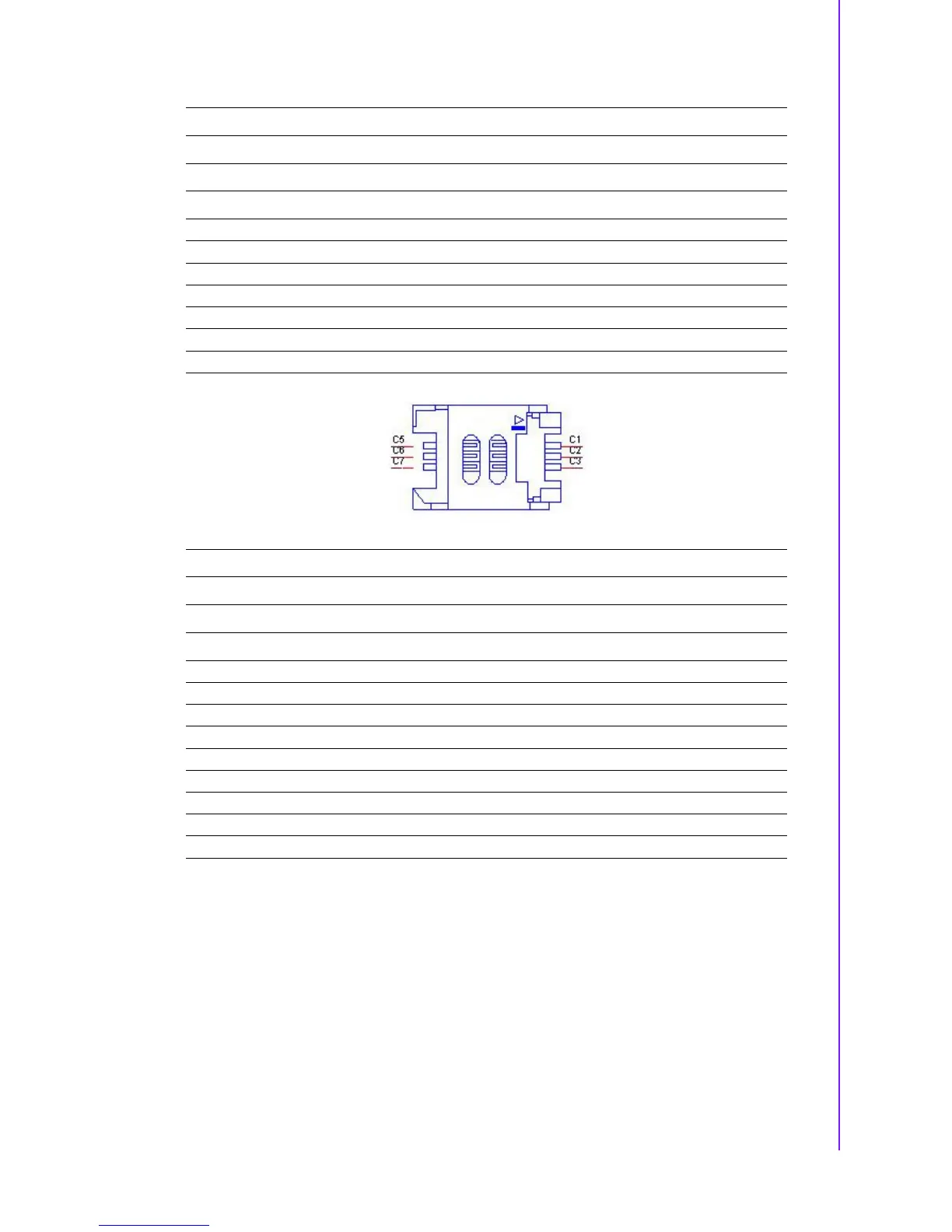

CN17 SIM Holder
Part Number 1654010809-01
Footprint SIM_6P_5210622-SINR03
Description SIM card conn. 6p 2.54mm 90D(F) SMD 5210622-SINR
Pin Pin Name
C1 UIM_PWR
C2 UIM_RESET
C3 UIM_CLK
C5 GND
C6 UIM_VPP
C7 UIM_DATA
CN18 External USB
Part Number 1654009513
Footprint USB_8P_UB1112C-8FDE-4F
Description USB CONN. 8P 2.0mm 90D DIP UB1112C-8FDE-4F
Pin Pin Name
1+5V
2D-
3D+
4GND
5+5V
6D-
7D+
8GND
