PCM-3365 User Manual 56

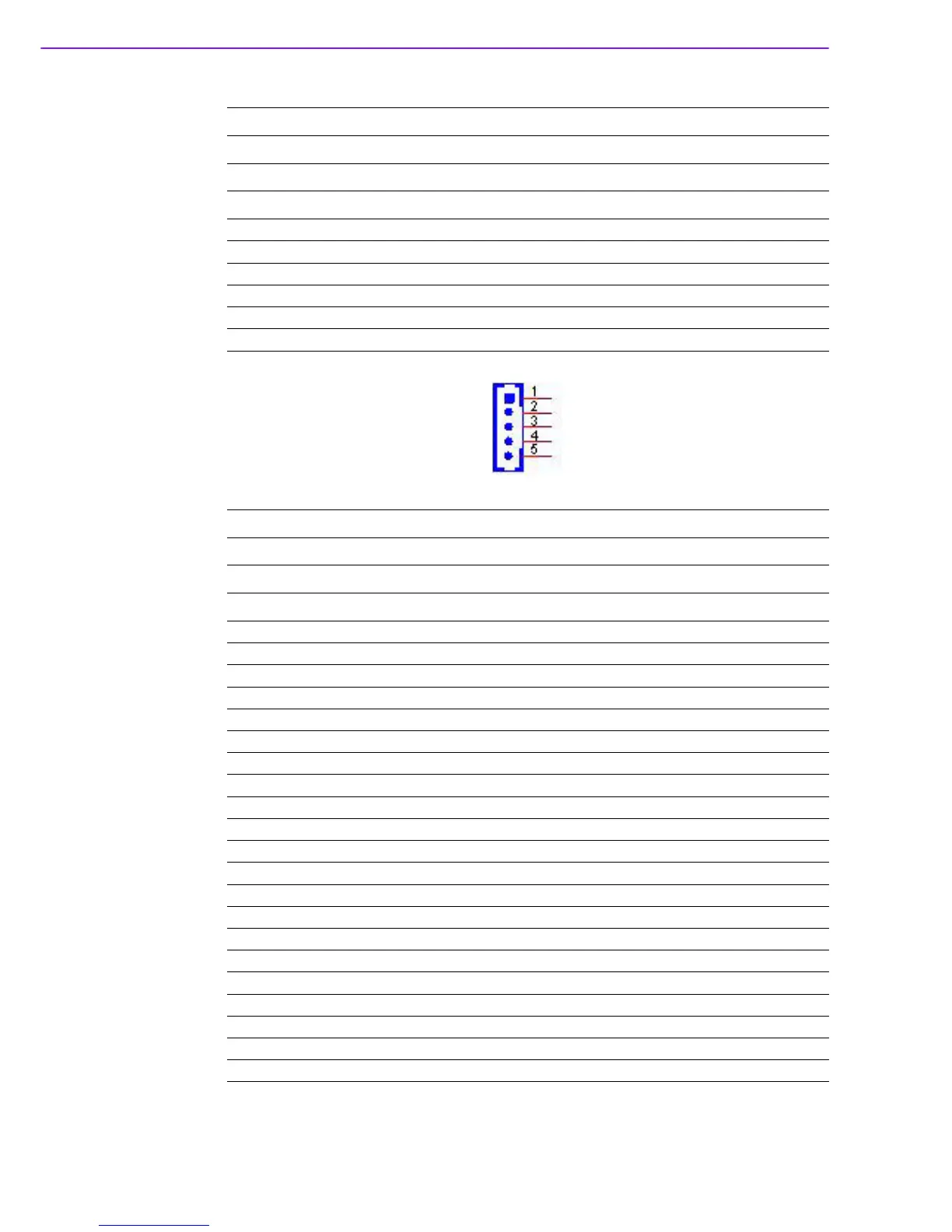

CN23 Inverter Power Output
Part Number 1655004802-01
Footprint WF_5P_79_BOX_RA_D
Description WAFER BOX 5P 2.0mm 90D(M) DIP 50387-0053N-001
Pin Pin Name
1 +12V
2GND
3ENABKL
4PWM
5+5V
CN24 24 bits LVDS Panel
Part Number 1653910261
Footprint SPH10X2
Description B/B Conn 10x2P 1.25mm 180D(M)SMD DF13-20DP-1.25V
Pin Pin Name
1GND
2GND
3 LVDS1_0_D0+
4 LVDS1_VCCON
5 LVDS1_0_D0-
6NC
7 LVDS1_0_D1+
8NC
9 LVDS1_0_D1-
10 NC
11 LVDS1_0_D2+
12 NC
13 LVDS1_0_D2-
14 NC
15 LVDS1_0_CLK+
16 LVDS1_0_D3+
17 LVDS1_0_CLK-
18 LVDS1_0_D3-
19 +5V or +3.3V
20 +5V or +3.3V
