55 PCM-3365 User Manual
Appendix A Pin Assignments
20 GND

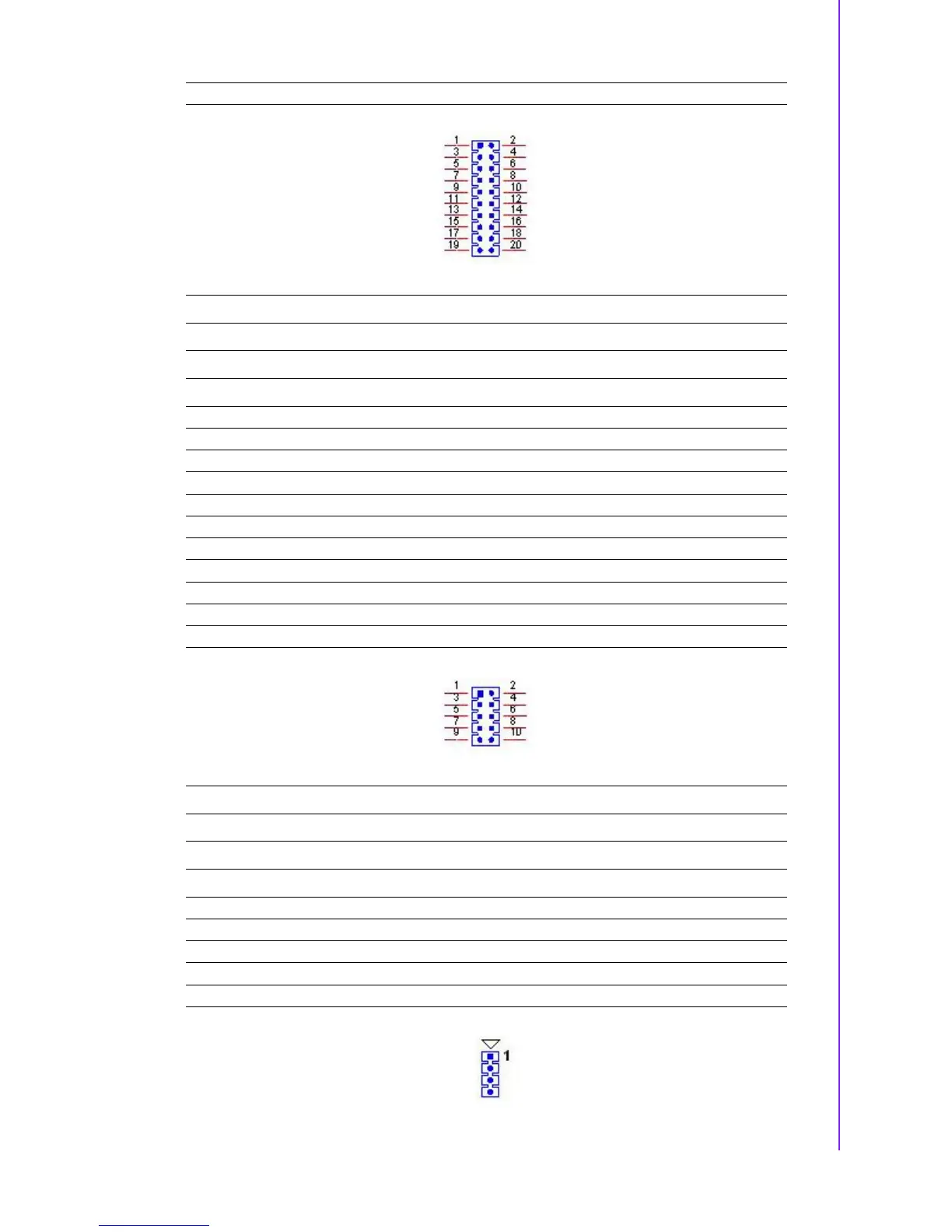

CN20 LAN
Part Number 1653003719
Footprint HD_5x2P_79_RA_21N22050
Description PIN HEADER 5x2P 2.00mm 90D(M) SMD 21N22050
Pin Pin Name
1GND
2GND
3LAN1_MDI3+
4LAN1_MDI3-
5LAN1_MDI2+
6LAN1_MDI2-
7LAN1_MDI1+
8LAN1_MDI1-
9LAN1_MDI0+
10 LAN1_MDI0-
CN21 LAN LED
Part Number 1653004101
Footprint HD_4x1P_79_D
Description PIN HEADER 4x1P 2.0mm 180D(M) DIP 21N12050
Pin Pin Name
1+V3.3SB
2 LAN1_ACT#
3 LAN1_LINK100#
4 LAN1_LINK1000#
