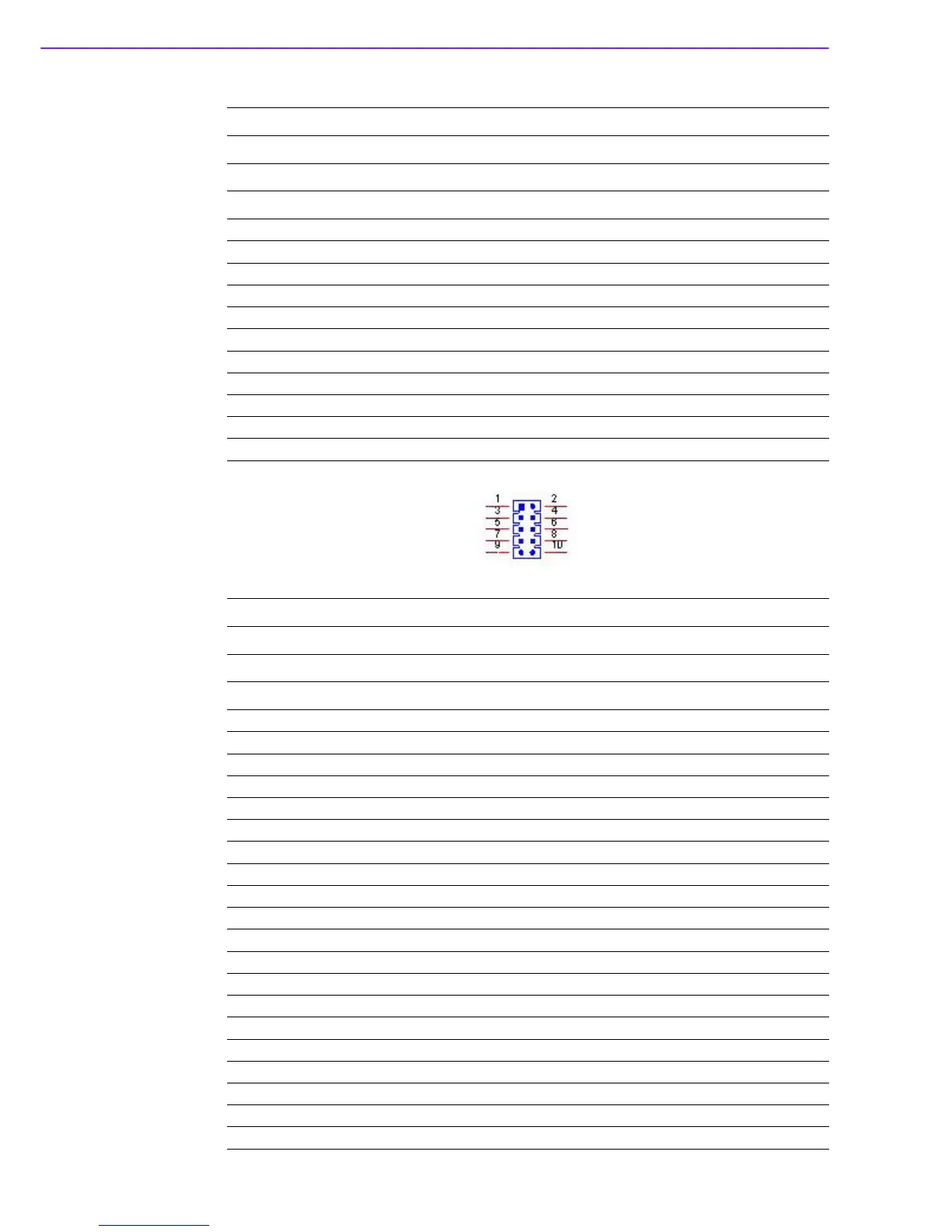

CN18 COM1
Part Number 1653003719
Footprint HD_5x2P_79_RA_21N22050
Description PIN HEADER 5x2P 2.00mm 90D(M) SMD 21N22050
Pin Pin Name
1DCD#
2DTR#
3RXD
4RTS#
5TXD
6CTS#
7DTR#
8RI#
9GND
10 GND
CN19 COM2/COM3
Part Number 1653003720
Footprint HD_10x2P_79_RA
Description PIN HEADER 10x2P 2.00mm 90D(M) SMD 21N22050-20J1
Pin Pin Name
1DCD2#
2DSR2#
3RXD2
4RTS2#
5TXD2
6CTS2#
7DTR2#
8RI2#
9GND
10 GND
11 DCD3#
12 DSR3#
13 RXD3
14 RTS3#
15 TXD3
16 CTS3#
17 DTR3#
18 RI3#
19 GND
