17 UTC-318 User Manual
Chapter 3 Hardware Installation and Upgrades
3.3 mSATA/m.2 Card Installation
1. Remove the 10 screws on the rear cover.
2. Remove the 6 screws on the reinforced board.
3. Insert an mSATA/m.2 card into the slot.
4. Replace and tighten the screws on the reinforced board.
5. Replace the rear cover and secure in place with screws.

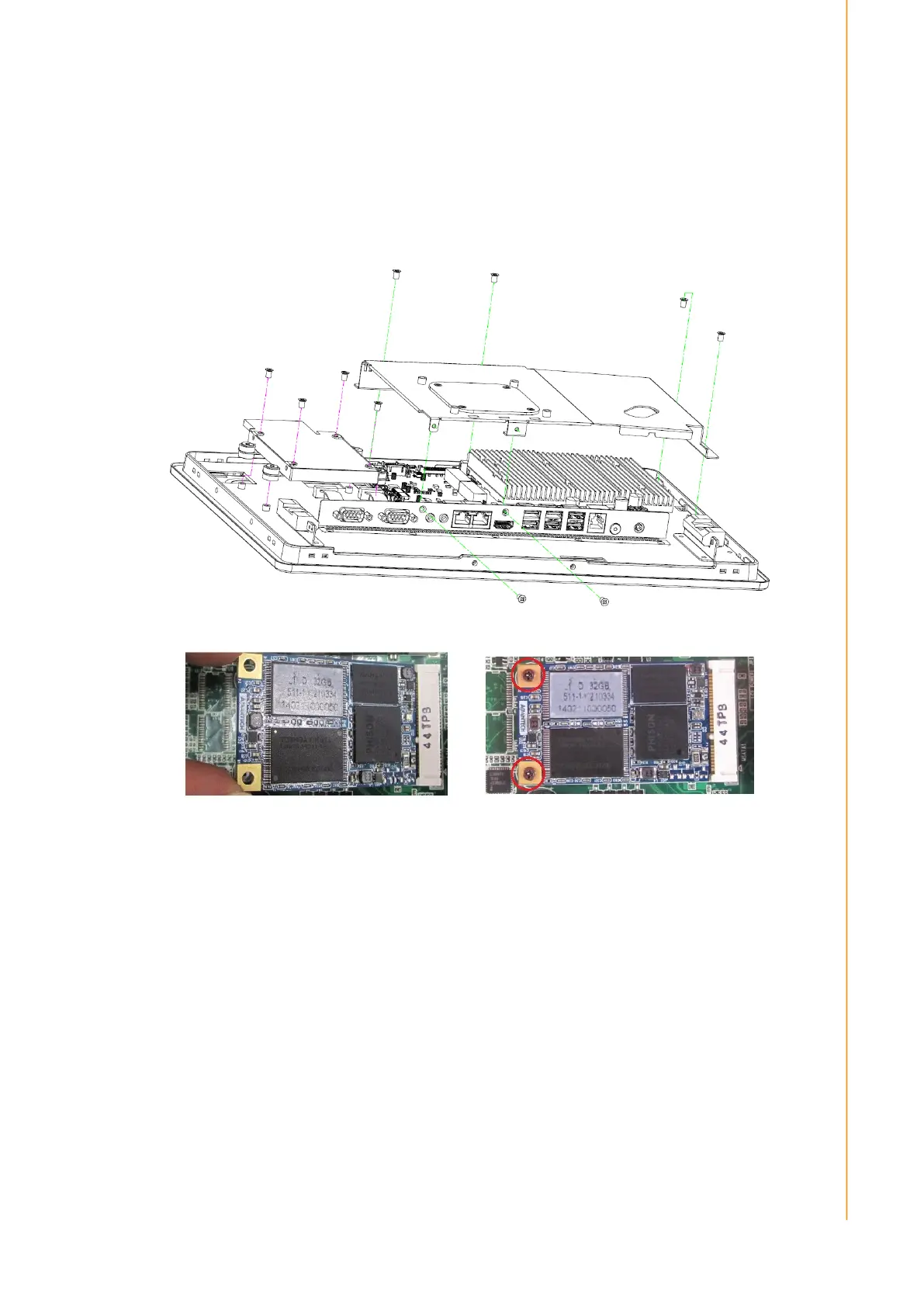

Figure 3.2 Installing an mSATA/m.2 Card
