27 UTC-318 User Manual
Chapter 4 Jumper and Connector Settings
4.2 Jumpers
4.2.1 Jumper List
4.2.2 Jumper Settings

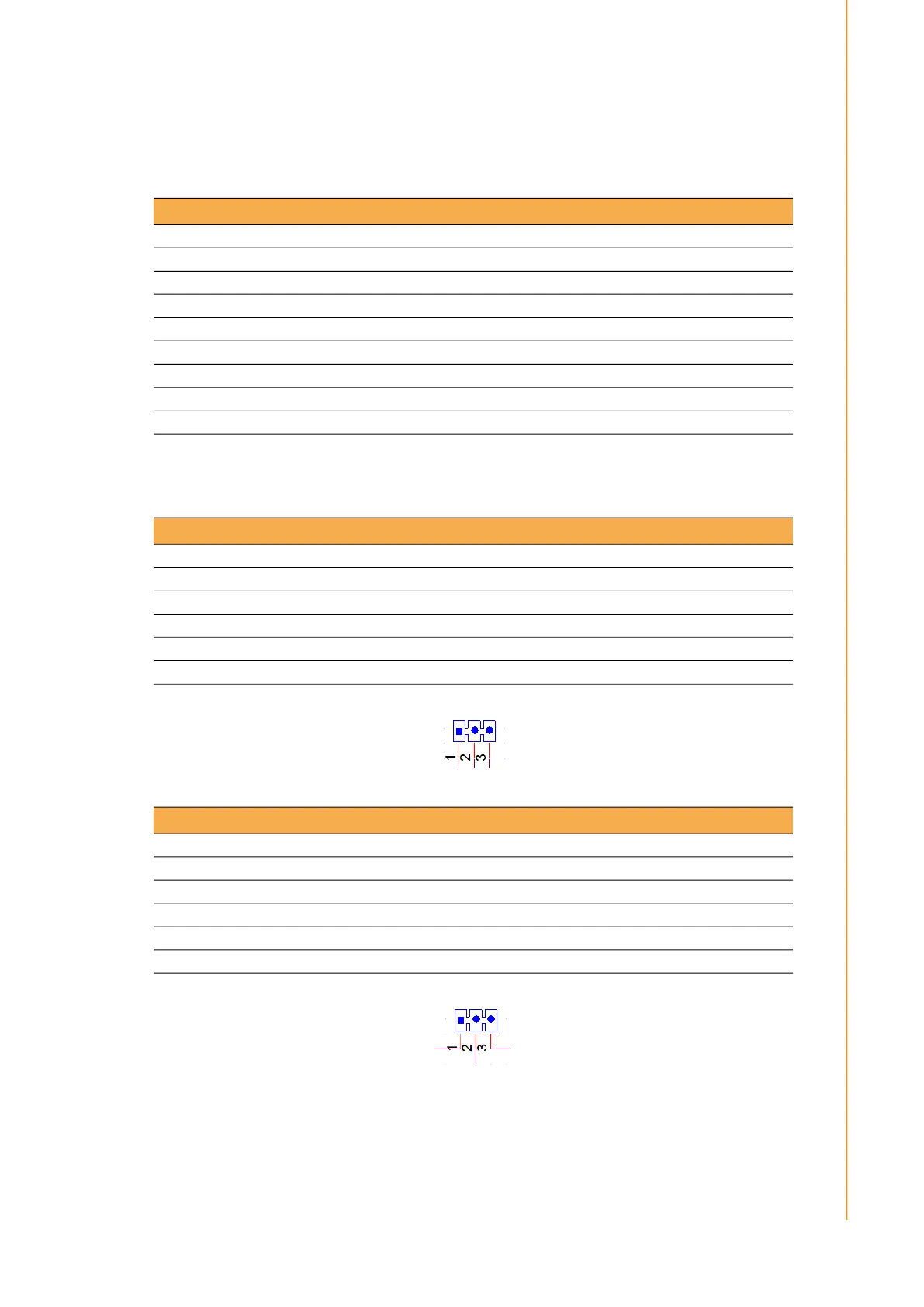

Table 4.2: Jumper List
JP1(DH),JP3(EF) LCD POWER
JP3(D),JP6(E),JP5(FH),JP4(G) Clear CMOS
JP4(H) TS POWER
JP4(D),JP5(EG),JP7(F),JP8(H) AT/ATX POWER SEL
CN17(D),CN9(EF),CN14(G),CN18(H) COM1,COM2 RING
JCASH1 Cash drawer power
CN10(E) CSAFE POWER
JP1(H) PWM Power
JP2(H) BKLT_EN Power
Table 4.3: P1(D),JP3(EF):LCD POWER
Part Number 1653003100
Footprint HD_3x1P_100_D
Description PIN HEADER 3x1P 2.54mm 180D(M) DIP 205-1x3GS
Setting Function
(1-2) 5V
(2-3)* 3.3V
Table 4.4: JP1(H):PWM POWER
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2) 5V
(2-3)* 3.3V
