UTC-318 User Manual 28

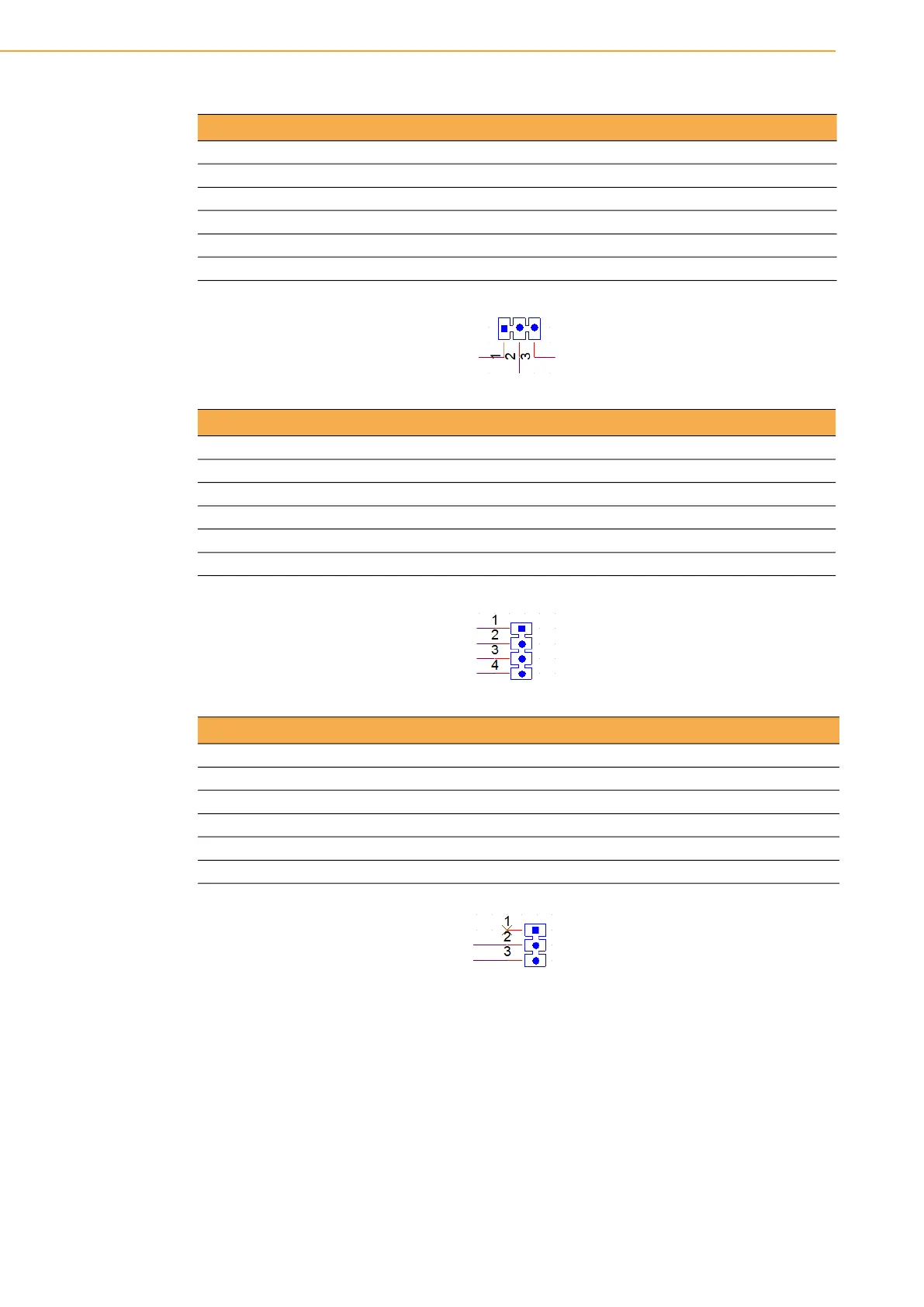

Table 4.5: JP2(H):BKLT Enable POWER
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2) 5V
(2-3)* 3.3V
Table 4.6: JP3(D),JP6(E),JP5(F),JP4(G):Clear CMOS
Part Number 1653004101
Footprint HD_4x1P_79_D
Description PIN HEADER 4x1P 2.0mm 180D(M) DIP 21N12050
Setting Function
(2-3)* Normal
(3-4) Clear CMOS
Table 4.7: JP5(H):Clear CMOS
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2)* Normal
(2-3) CMOS Clear
