29 UTC-318 User Manual
Chapter 4 Jumper and Connector Settings

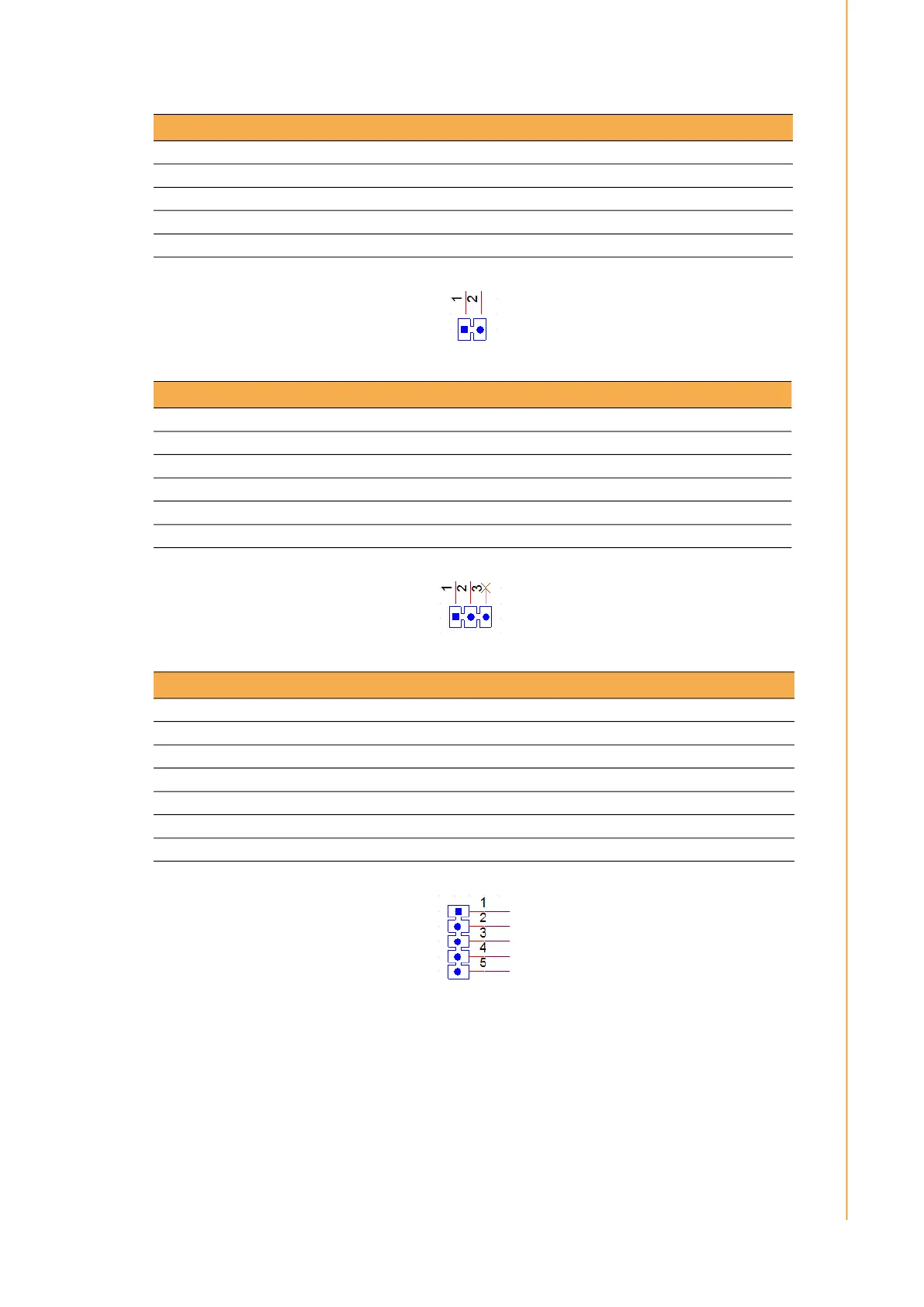

Table 4.8: JP4(H):TS POWER
Part Number 1653002101-02
Footprint HD_2x1P_79_D
Description PIN HEADER 2x1P 2.0mm 180D(M) DIP 21N12050
Setting Function
(1-2) 3.3V
Table 4.9: JP4(D),JP5(EG),JP7(F),JP8(H):AT/ATX POWER SEL
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3*1P 180D(M) 2.0mm DIP 2000-13 WS
Setting Function
(1-2) AT
(2-3)* ATX
Table 4.10: CN17(D):COM1 Ring
Part Number 1653005101
Footprint HD_5x1P_79_D
Description PIN HEADER 5x1P 2.0mm 180D(M) DIP 1140-000-05SN
Setting Function
(1-2) RING
(3-4)* COM1 RI output +5V
(4-5)* COM1 RI output +12V
