UTC-318 User Manual 30

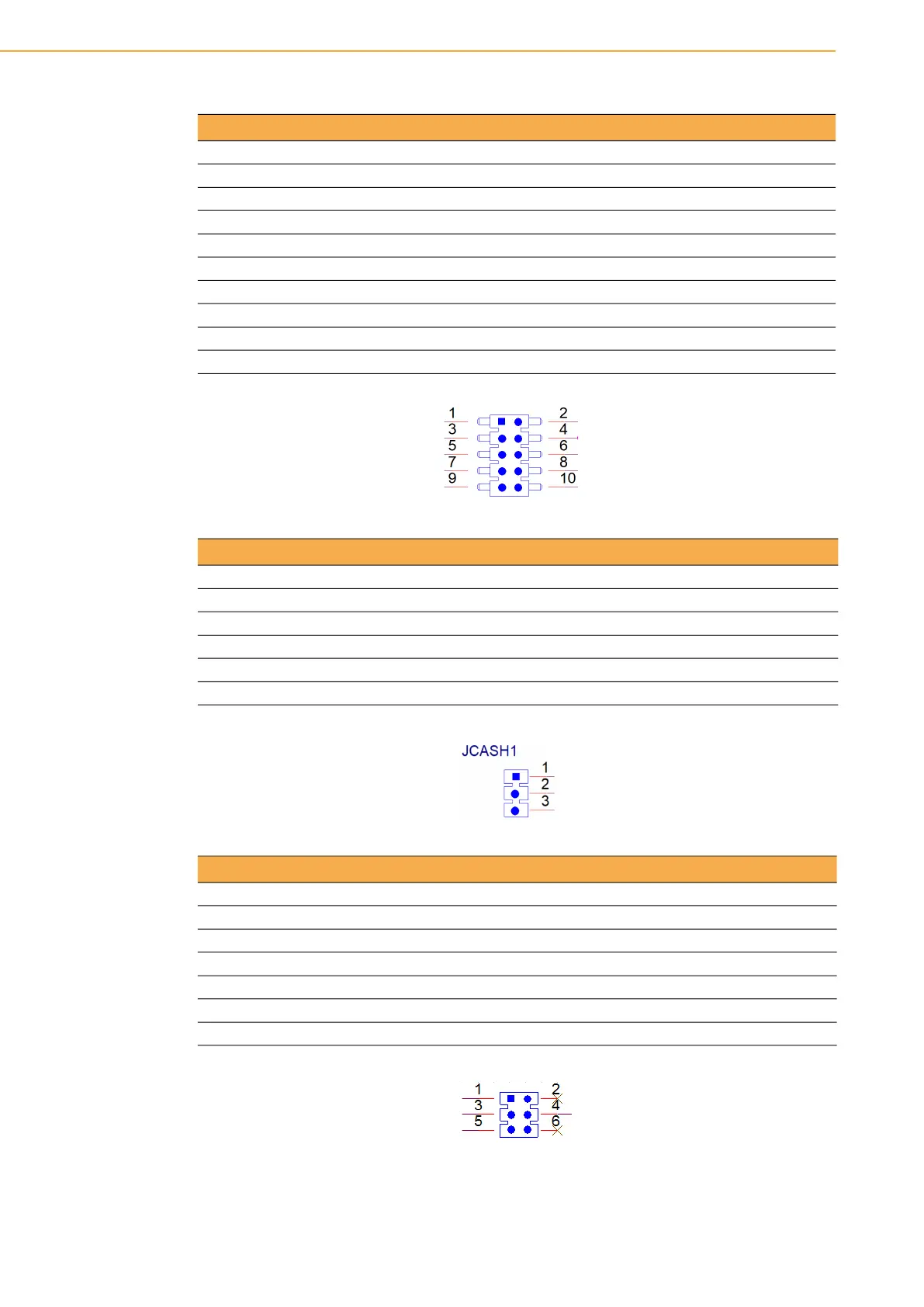

Table 4.11: CN9(EF),CN14(G),CN18(H):COM1,COM2 Ring
Part Number 1653005261
Footprint HD_5x2P_79
Description PIN HEADER 5x2P 2.0mm 180D(M) SMD 21N22050
Setting Function
(1-3) COM1 RING
(2-4) COM2 RING
(3-5)* COM1 RI output +5V
(4-6)* COM2 RI output +5V
(7-9)* COM1 RI output +12V
(8-10)* COM2 RI output +12V
Table 4.12: JCASH1: CASH DRAWER POWER SEL
Part Number 1653003100
Footprint HD_3x1P_100_D
Description PIN HEADER 3x1P 2.54mm 180D(M) DIP 1130-000-03S
Setting Function
(1-2) 12V
(2-3)* 24V
Table 4.13: CN10: CSAFE Power
Part Number 1653003201
Footprint HD_3x2P_79_D
Description PIN HEADER 3x2P 2.0mm 180D(M) DIP 21N22050
Setting Function
(1-3) * CSAFE output +5V
(3-4) CSAFE output +9V
(3-5) CSAFE output +12V
To Next Page
