UTC-320 User Manual 42

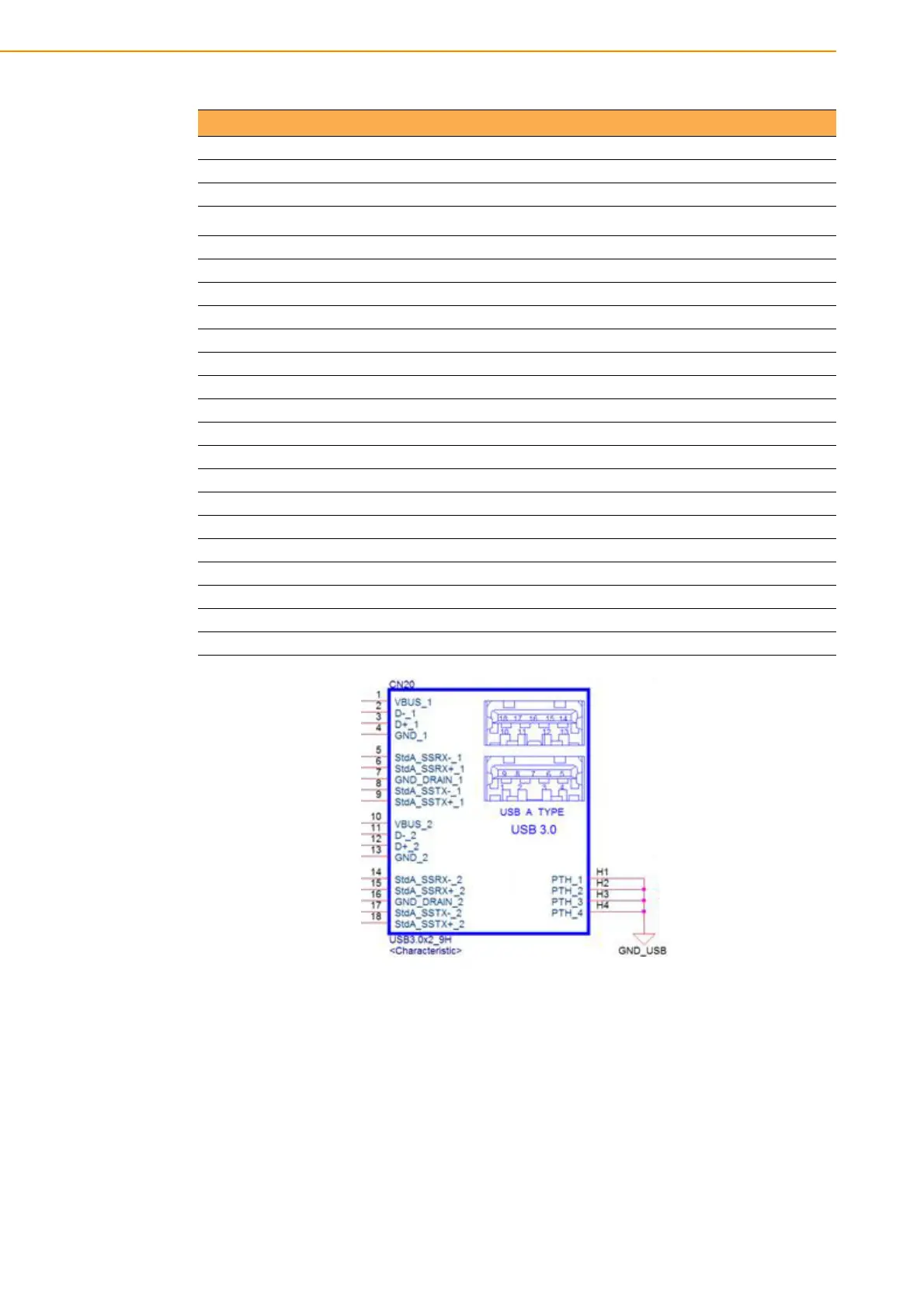

Table A.19: CN20:External USB
Part Number 1654010969-01
Footprint USB_9x2P_UEA1112C-8HS6-4F
Description USB CONN. 18P 2.0mm 90D(F) DIP UEA1112C
Pin Pin name
1 +5VSB
2D-
3D+
4GND
5 SSRX-
6 SSRX+
7GND
8 SSTX-
9 SSTX+
10 +5VSB
11 D-
12 D+
13 GND
14 SSRX-
15 SSRX+
16 GND
17 SSTX-
18 SSTX+
