Advent Roof Top User Manual

10

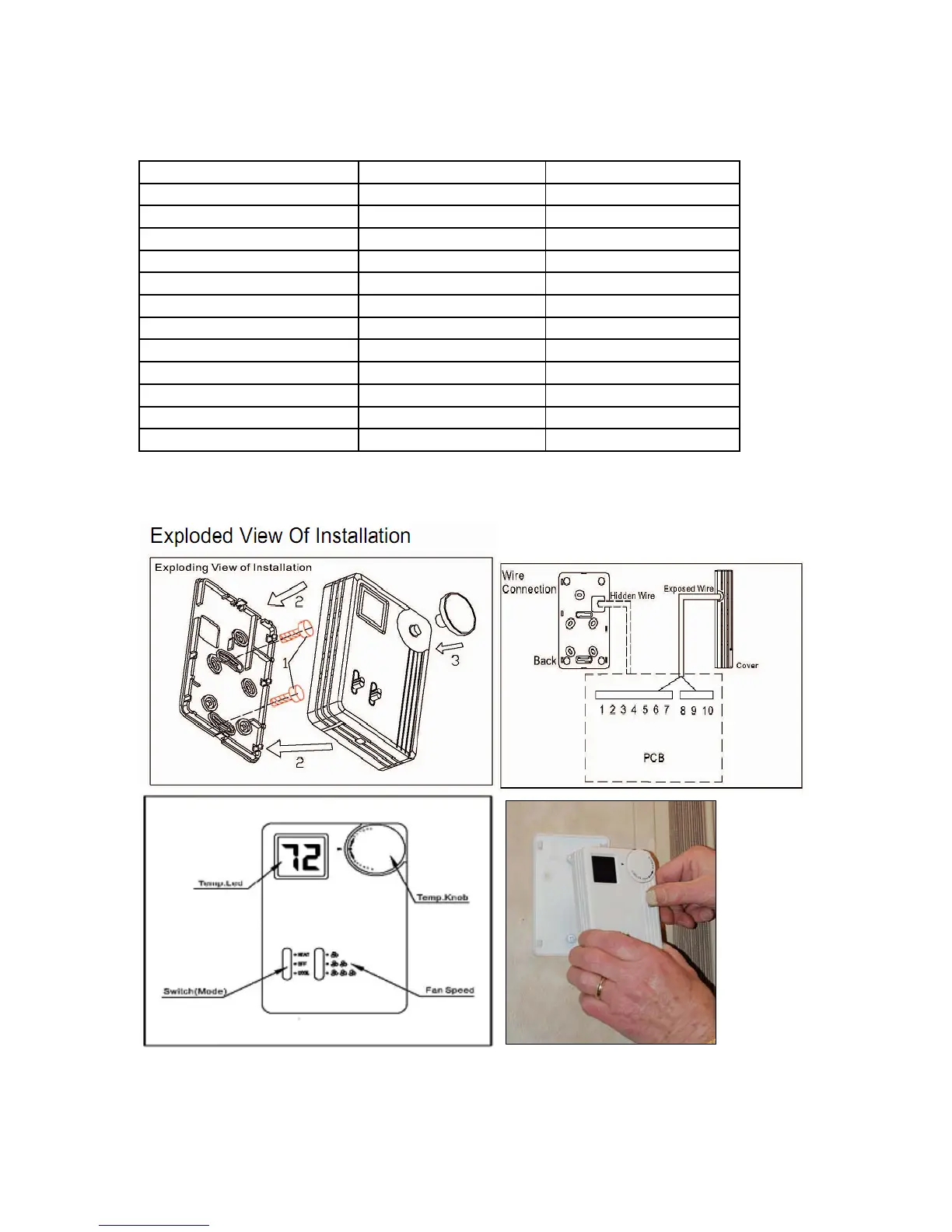

Figure 9B
MAIN CONTROLLER WIRING
Function Wire Color Label Text
12VDC output to Thermostat Red with White Stripe "T-Stat Power (12VDC)
Ground output to Thermostat Green "T-Stat Trigger"
Input from Thermostat Yellow "Compressor"
Input from Thermostat Orange "Elec. Heat Strip"
Input from Thermostat Blue "Hi Fan"
Input from Thermostat Tan "Mid Fan"
Input from Thermostat Grey "Low Fan"
Output to Thermostat PURPLE Freeze Sensor
Input from Thermostat Orange with Black Stripe Furnace Trigger
12VDC input from battery Red "Power (12VDC)"
DC ground from battery Black "Ground (12VDC)"
12VDC output for furnace relay Brown with White Stripe To Furnace (12VDC)
THERMOSTAT INSTALLATION:
