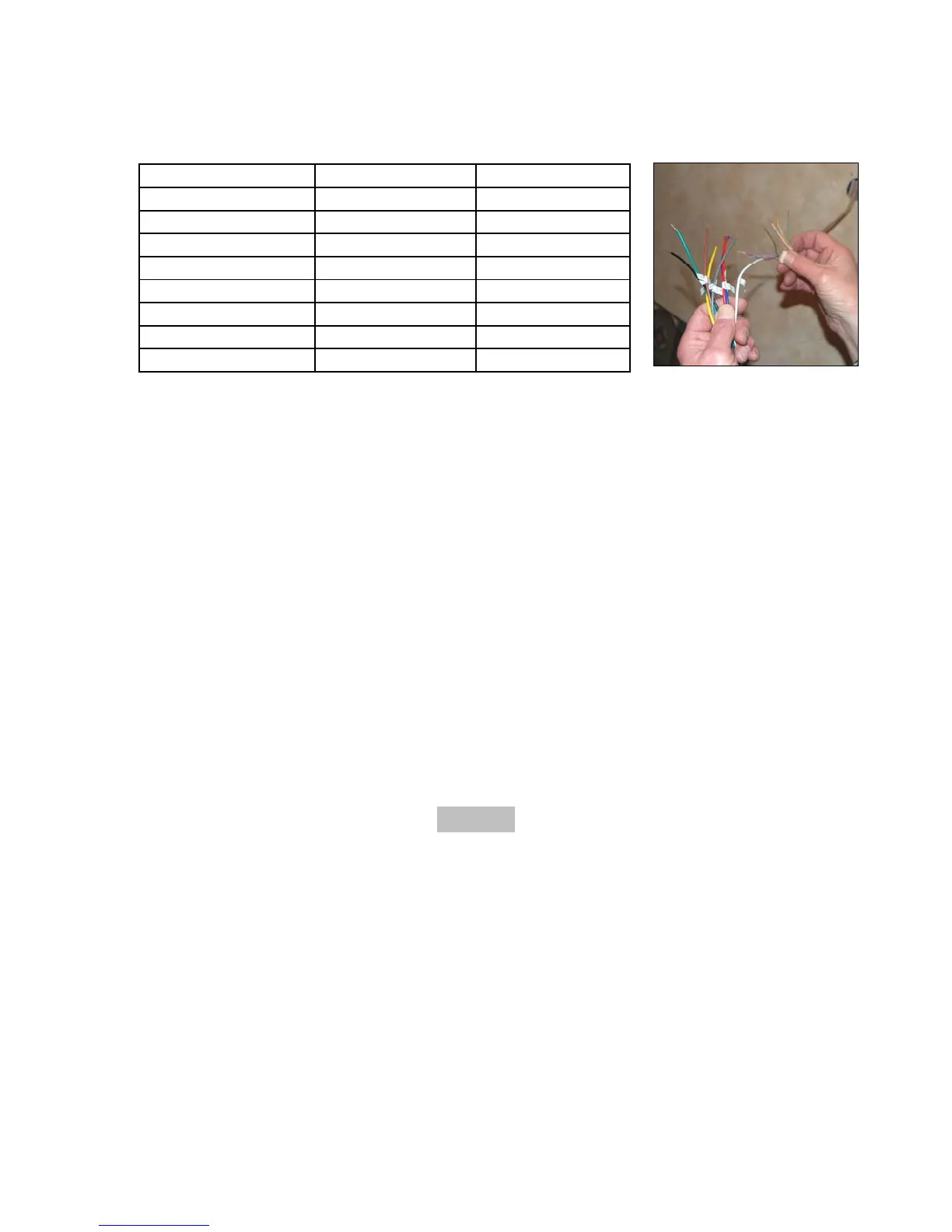

THERMOSTAT WIRING
Function Wire Color
Label Text
12VDC input from main unit Red with White Stripe "T-Stat Power (12VDC)
DC Ground from main unit Green "T-Stat Trigger"
Output to main unit Yellow "Compressor"
Output to main unit White with Orange Stripe Heat Trigger
Output to main unit Blue "Hi Fan"
Output to main unit Tan "Mid Fan"
Output to main unit Grey "Low Fan"
Input from main unit Purple Freeze Sensor
IMPORTANT: When connecting the wires:
1. Make any adjustments required to relieve pinched or stressed wiring.
2. Verify that the connectors have snapped together on both sides. Do not use excessive
force when joining the connectors.
CONNECTING 115VAC WIRING
1. WARNING - SHOCK HAZARD: To prevent the possibility of severe personal injury or
equipment damage due to electrical shock, always be sure the electrical power is
disconnected or off before beginning installation.
2. Route the 115 VAC supply wiring previously routed into the frame of the roof opening,
through the strain relief of the electrical box and into the high voltage wiring area.
DANGER
TO PREVENT THE POSSIBILITY OF SHOCK INJURY FROM APPLIANCE
OPERATION: THE WHITE WIRE MUST BE CONNECTED TO NEUTRAL IN THE
SERVICE BOX ENTRANCE AND THE MECHANICAL GROUND MUST BE
CONNECTED TO A GROUNDING LUG EITHER IN THE SERVICE BOX OR THE
MOTOR GENERATOR COMPARTMENT.
