4

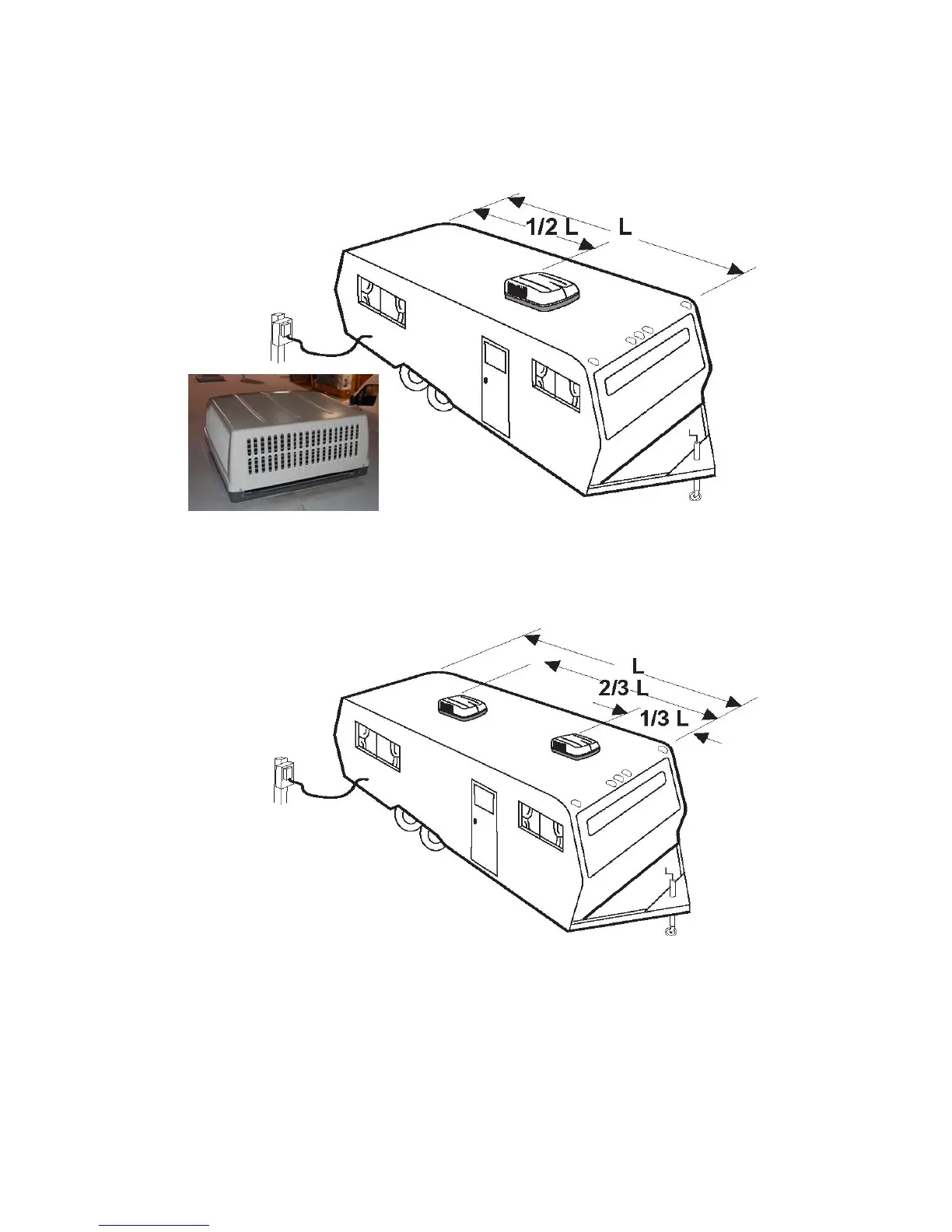

1. For one unit installation: The air conditioner should be mounted slightly forward of
center (front to back) and centered from side to side. See Figure 1
Figure 1
2. For two unit installation: Install one air conditioner 1/3 distance and the other air
conditioner 2/3's from front of RV and centered from side to side. See Figure 2
Figure 2
It is preferred that this air conditioner be installed in a relatively flat and level roof section measured
with the RV parked on a level surface; however, up to 15° slant to either side, or front-to-back is
acceptable.
