33Cleaning and Care
Oven door glass
The oven door is fitted with three panels of glass mounted one behind the other.The in-
ner panels can be removed for cleaning.
1 Important! Rough handling, especially around the edges of the front panel, can cause
the glass to break.

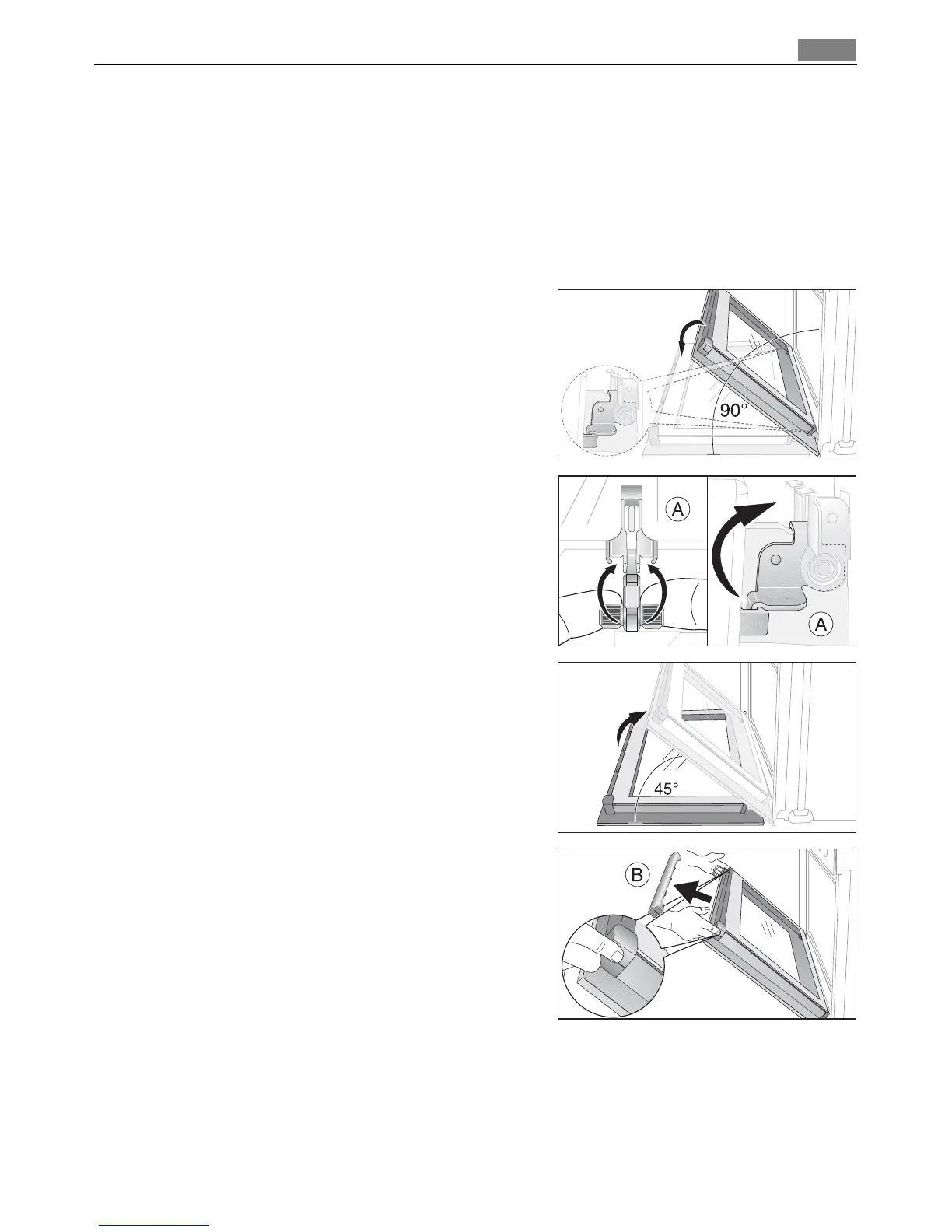

Removing the door glass panels
1. Open the oven door as far as it will go.
2. Undo the clamping levers (A) on both door
hinges fully
3. Close the oven door as far as the first position
(approx. 45°).
4. Take hold of the door trim(B) on the upper edge
of the door at both sides and press inwards to
release the clip seal. Then remove the door trim
by pulling it upwards.
