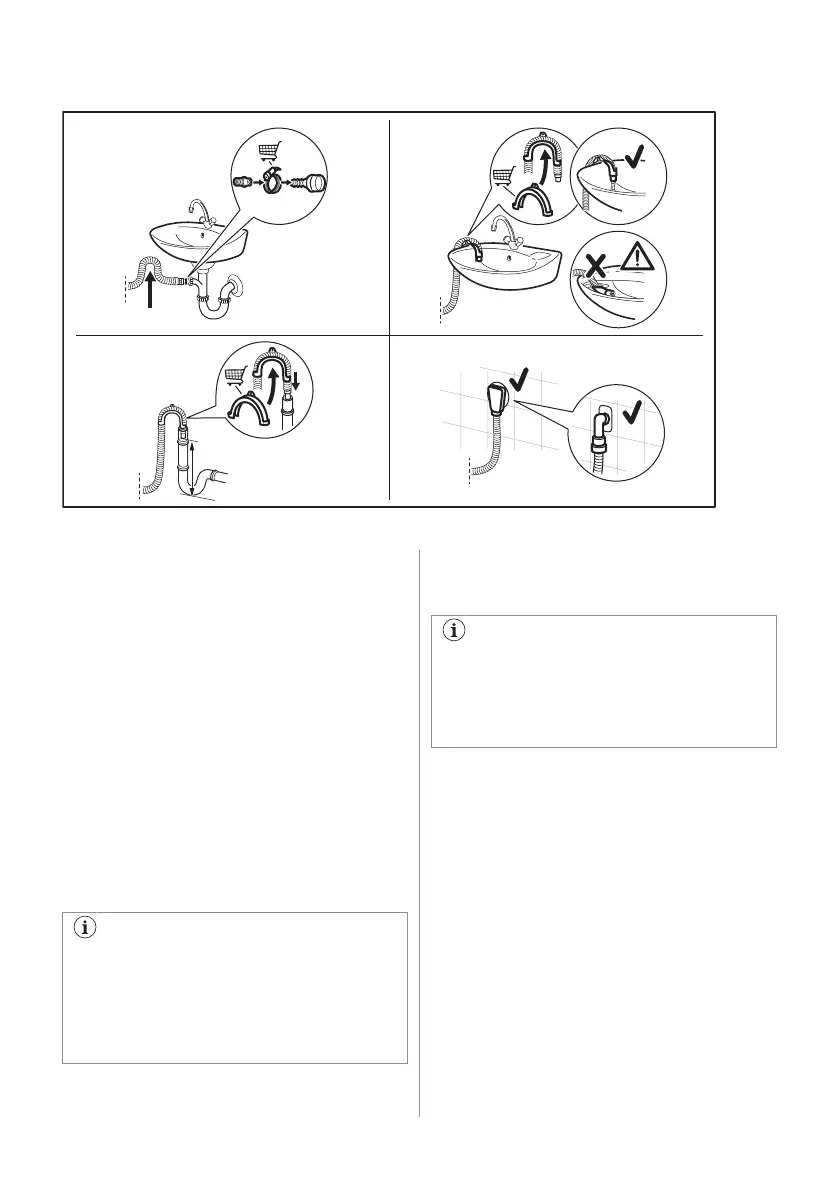

It is possible to connect the drain hose in different ways:
min.600 mm
max.1000 mm
(
*
)
(
*
)
(
*
)
* Subject to change spare parts without notice.
Make sure that the drain hose makes a loop
to prevent particles going into the appliance
from the sink.
Connect the drain hose to the spigot and
tighten it with a clamp. Make sure that the
drain hose makes a loop to prevent particles
going into the appliance from the sink.
Position the hose directly to a built-in drain
pipe in the room wall and tighten it with a
clamp.
Without the plastic hose guide, to a sink
spigot- Put the drain hose in the spigot and
tighten it with a clamp.
The drain hose can be bent into U shape and
put around the plastic guide. On the edge of a
sink - Fasten the guide to the water tap or to
the wall.
Make sure that the plastic guide cannot
move when the appliance drains and the
drain hose end is not immersed in the
water. There may be a return of dirty
water into the appliance. Buy accessories
from authorised supplier.
To a stand pipe with vent hole - Insert the
drain hose directly into a drain pipe or stand
pipe
The end of the drain hose must always
be ventilated , i.e. the inner diameter of
the drain pipe (min. 38 mm - min. 1.5")
must be larger than the external diameter
of the drain hose.
5.3 Installation on suspended
flooring
Suspended wooden floors are particularly
susceptible to vibration.
To limit vibration we recommend placing a
waterproof wooden panel, at least 15 mm
thick, under the appliance. It should be
screwed to at least 2 floor beams and should
extend beyond the front feet.
If possible, install the appliance where the
floor is more stable.
5.4 Electrical connection
At the end of installation you can connect the
mains plug to the mains socket.
10 ENGLISH
