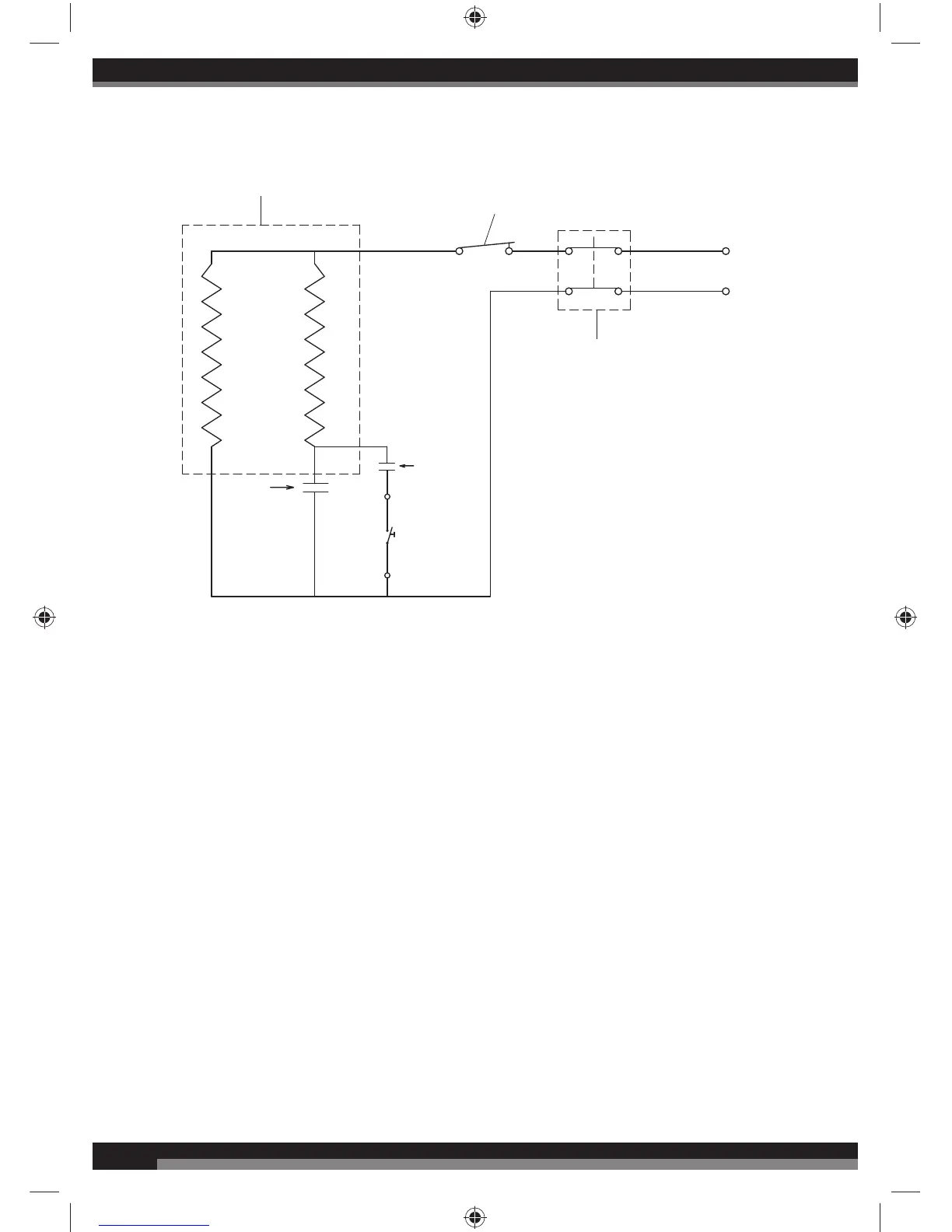

AEG AC3050B - Circuit Diagram; Electrical Schematic

16
16
L
N
~
Pressure Switch
Working
capacitor
Current protector
Motor
Main
winding
Aux.
winding
Centrifugal
switch
Start
capacitor
220V-240V
INPUT POWER
2200W
Main winding: 1.0 mm
Aux. winding: 1.05 mm
Start capacitor: 250V/250uf
Working capacitor: 450V/40uf
Input power: 2.2 kW
Power cable: 1.5 mm²
CIRCUIT DIAGRAM
