5.6 Building in
600 mm
min.
820 mm
min.
560 mm
16-22 mm
min.

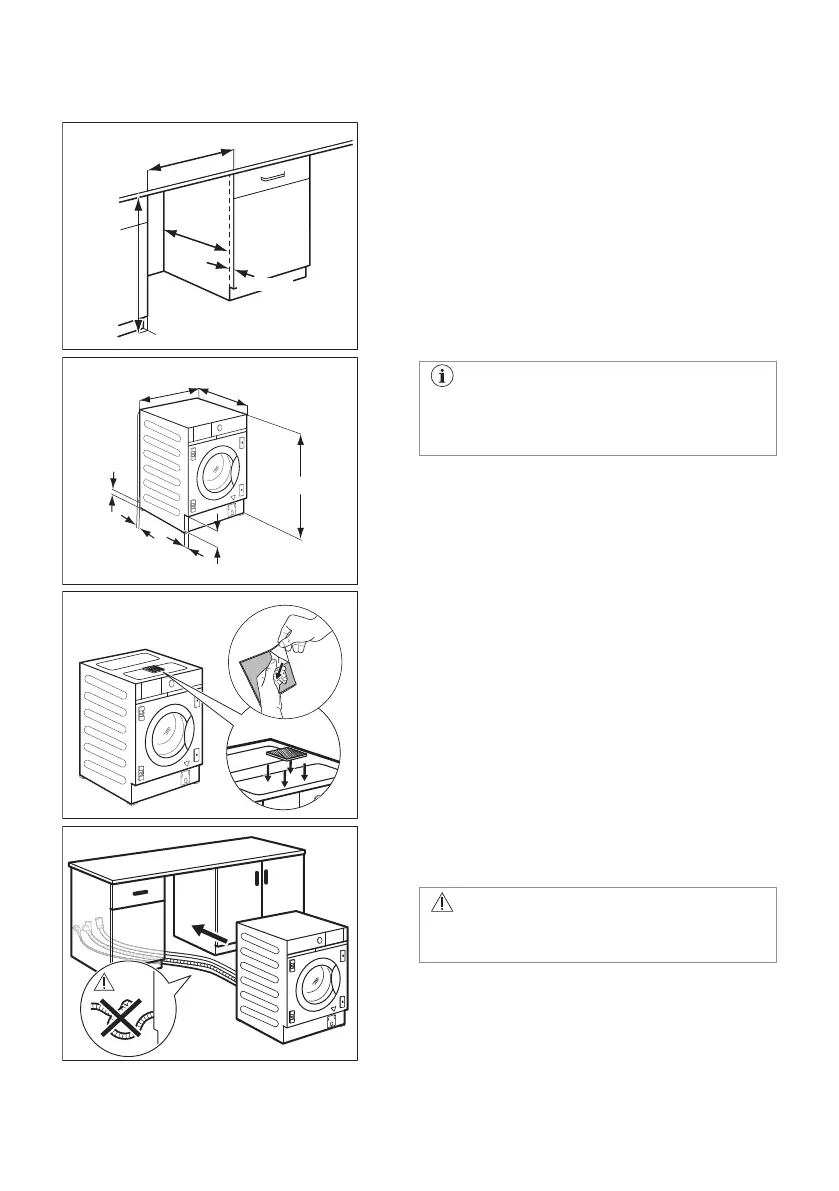

This appliance has been designed to be built into
the kitchen furniture. See the minimum recess
dimensions in the drawings.
553 mm
596 mm
140 mm
76 mm
50 mm
50 mm
819 mm
If hoses run behind the appliance, make
sure that nothing closes the small recess
indicated with the measures 50 x 50 mm.
The appliance is also equipped with an adhesive
sponge pad H that you can find inside the drum.
Attach it on the top of the appliance where
indicated in the drawing.
When levelling the appliance under the furniture,
DO NOT squeeze the sponge pad.
Before proceeding with appliance building in,
bring it near the recess and preposition the inlet
hose, the drain hose and the mains cable.
WARNING!
Make sure they are not kinked or
squashed.
16 ENGLISH
