AA80 InterVOX Intercom Systems
SM08 Installation and Operation Manual
April 30, 2012 Rev: 5.00 Page 2-7
ENG-FORM: 805-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.

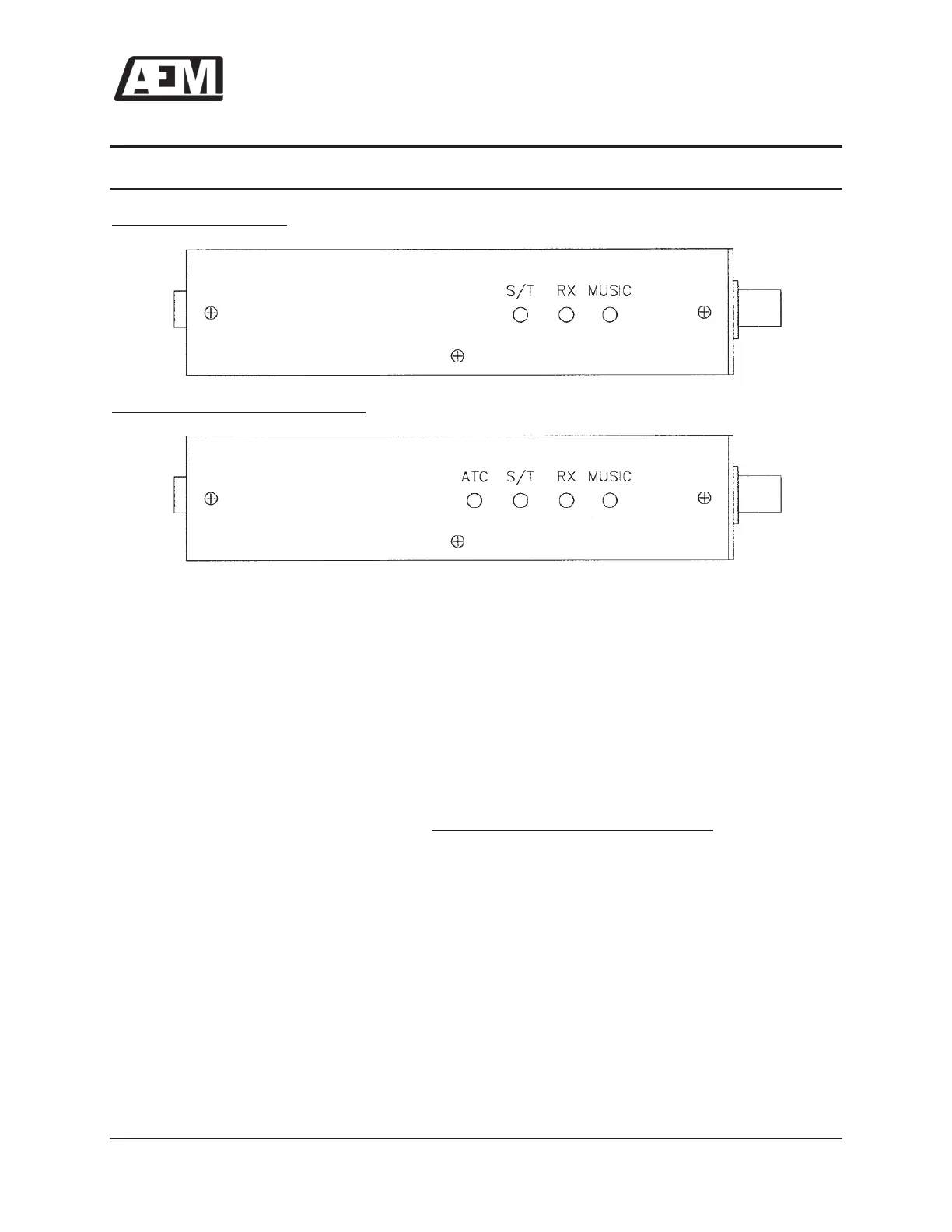

2.4.3 Adjustment Locations
Up to serial number 2999
Serial Number 3000 and subsequent
Notes:
S/T adjusts level of INTERNALLY GENERATED SIDETONE (if not produced by existing radios).
RX adjusts level of RECEIVE AUDIO from existing radio equipment. Should be balanced for adequate
level in both InterVOX and Pilot Isolation (emergency) modes.
MUSIC adjusts level of EXTERNAL MUSIC SOURCE (tape player or other).
ATC adjusts the trigger point for the music muting from an incoming radio source (ATC transmissions).
Use a small straight blade screwdriver, or potentiometer tool to make these adjustments, and do not exert
excessive force.
Only the ICS level is adjustable from the front. All other levels are preset via these pots.
