AA80 InterVOX Intercom Systems

SM08 Installation and Operation Manual

April 30, 2012 Rev: 5.00 Page 2-13

ENG-FORM: 805-0100.DOTX

CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.

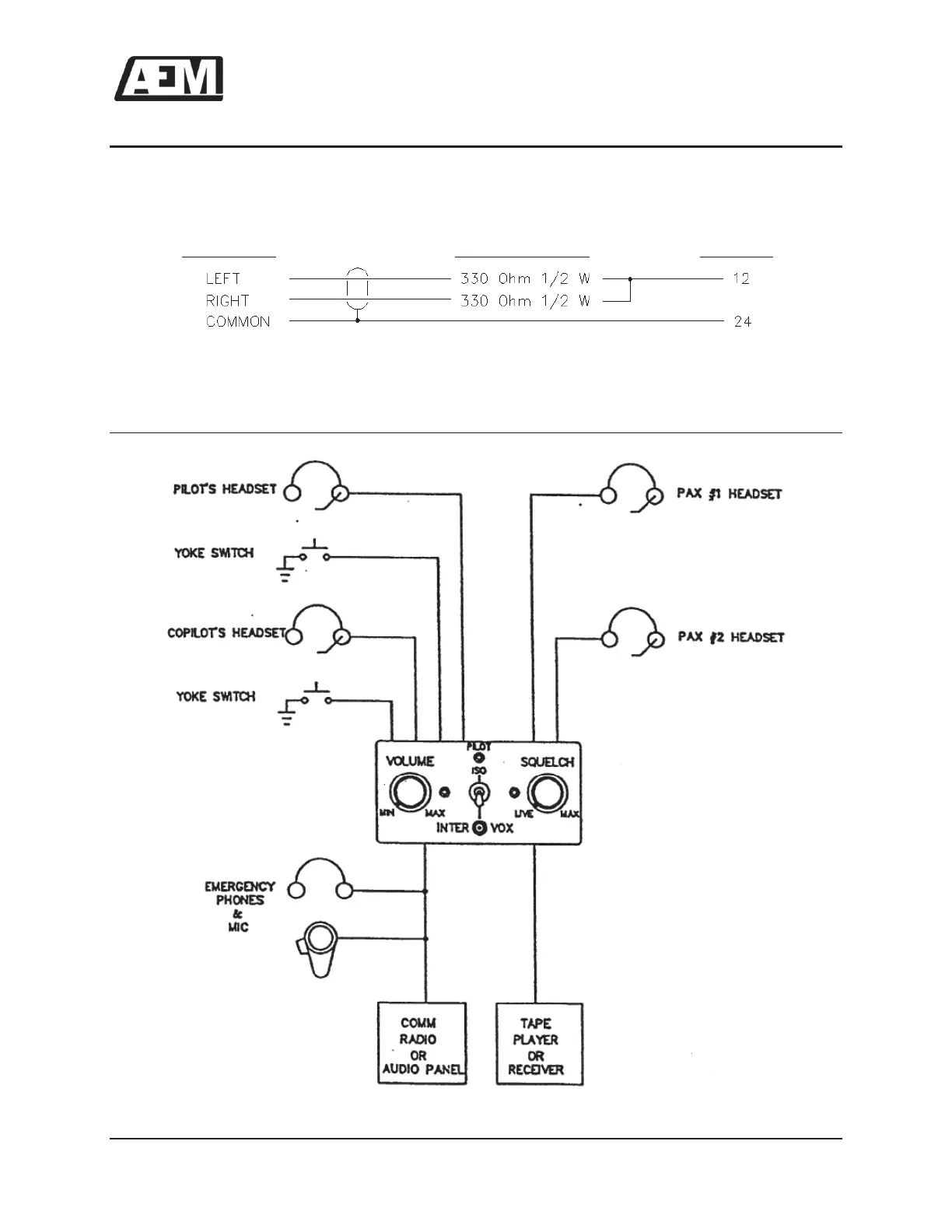

6. If a stereo music source is used with the AA80-020/-062 it can be interfaced to the single pin input

(pin 12) in the following way. Note that this assumes that the low or common sides of the audio from the

music source are grounded together, and are NOT BRIDGE TYPE outputs.

Music Source

Outboard Resistors AA80 Pins

This will produce a composite mono music source for use in the AA80-020/-062. In the AA80-001/-060

this connection is made internally, so no outboard components are needed.

2.5.1 System Block Diagram: AA80-001 Version
