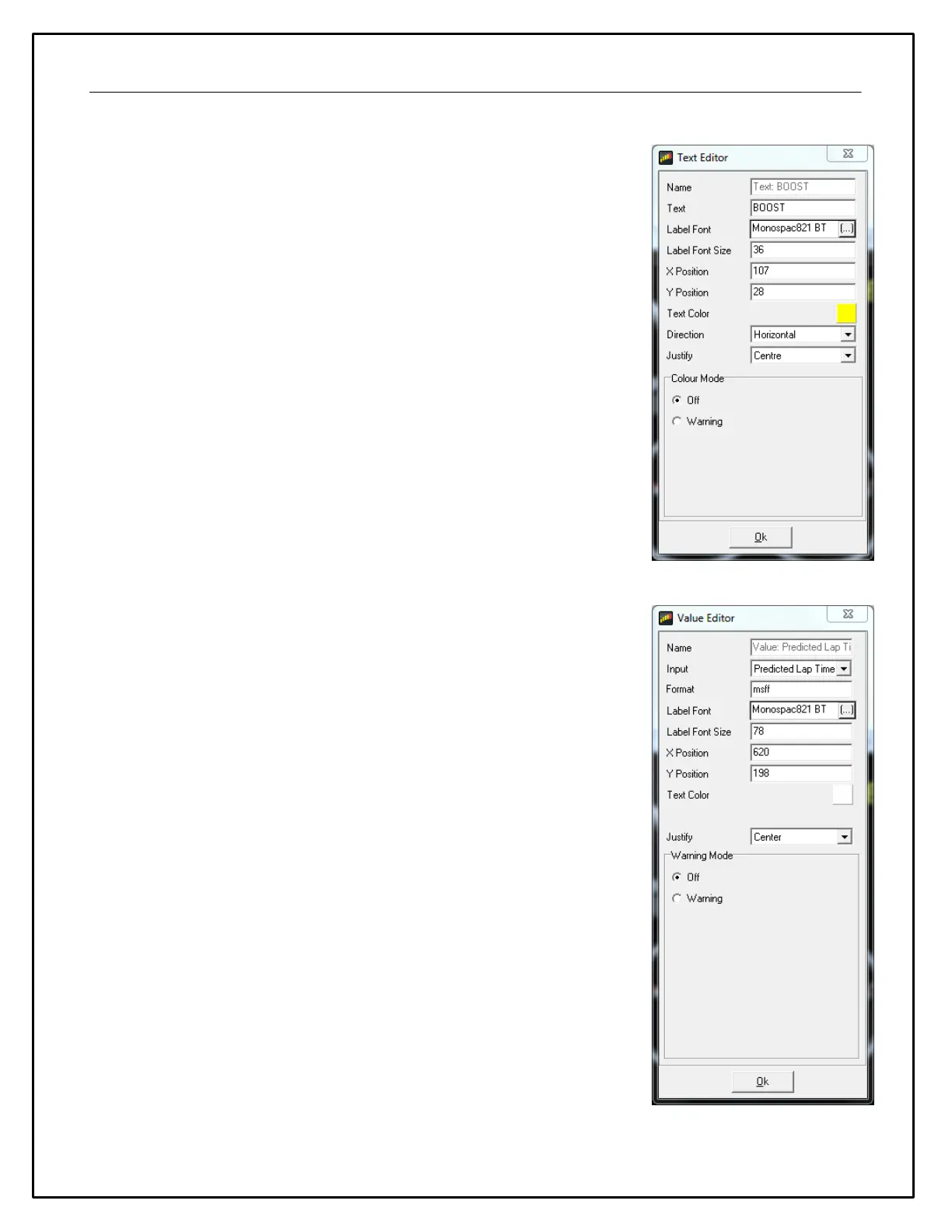

Text Label Gauge
The Text Label gauge is a static gauge (it has no input) that is used to label
other gauges and provide static information to the user. The text displayed in the
gauge is set in the Text property. The Direction property is used to specify the
direction in which the text is drawn in. Right specifies left to right. Down specifies
top to bottom.
Variable String Gauge
The variable text gauge is used to display text from a text output such as a bit
text output. The Justification property specifies whether the text is aligned to
the left, right or centre of the bounding rectangle.
Note: It is important to select the background color of the value gauge to
be the same as the color of the background the gauge is over. Failure to
do so will result in corruption of the value displayed.
