Aercus WS3085 - Page 10

Aercus
Instruments™
-
WS3085
10
|
P a g e

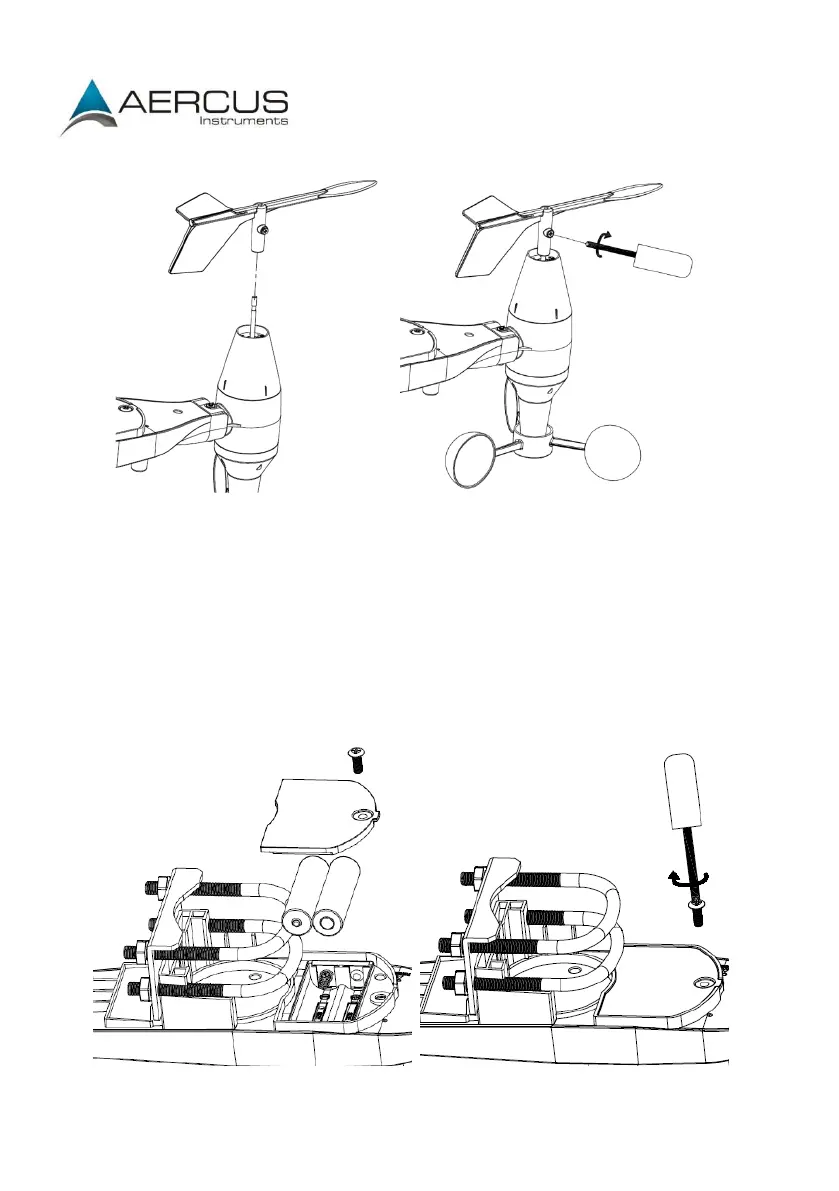

Figure 6: Wind vane installation
4. Install Batteries
Insert 2xAA batteries into the battery compartment and tighten the screw of battery
cover. The LED indicator on the back of the transmitter will turn on for 4 seconds
and flash once every 48 seconds.
Figure 7: Battery installation diagram
