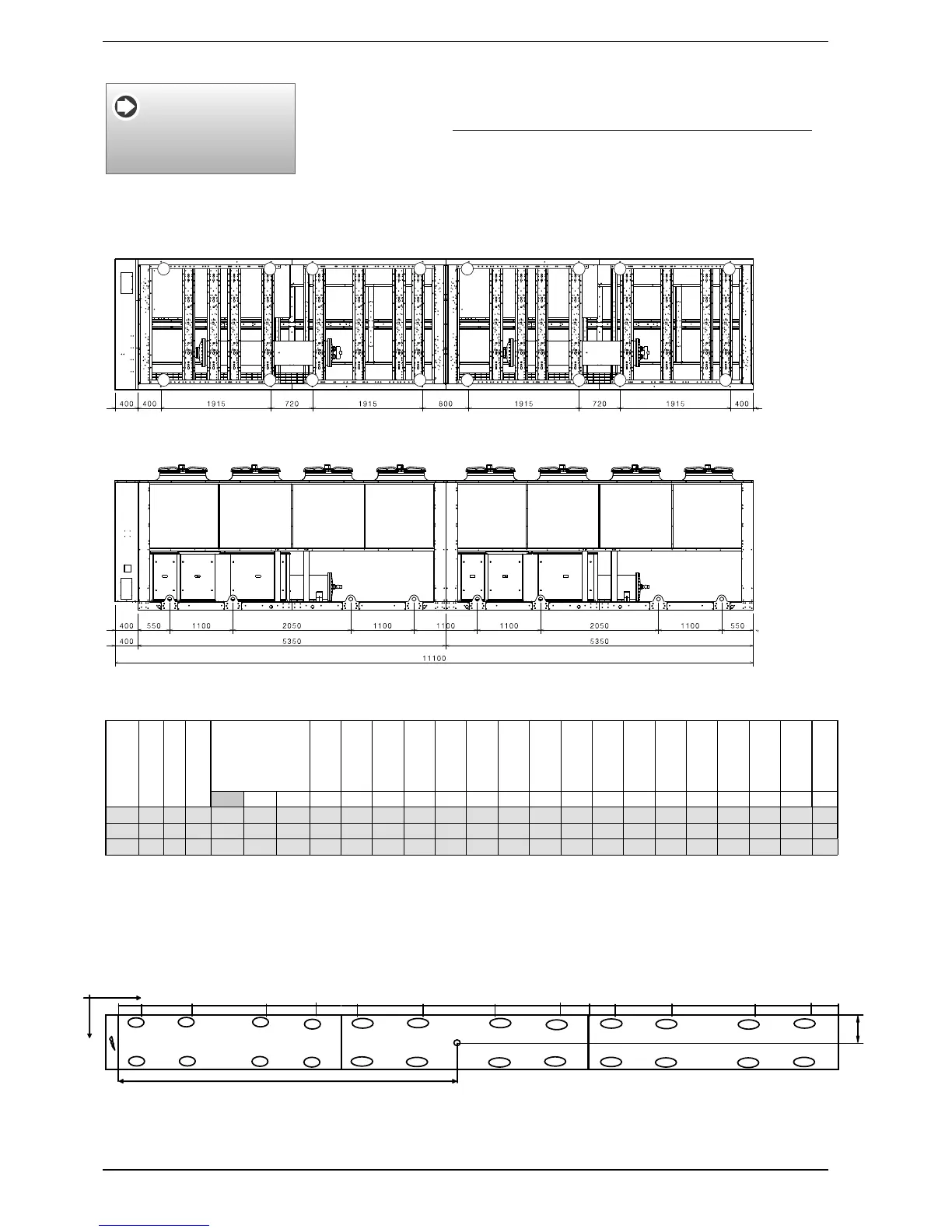

19.12. CARPENTRY BY 11100 (mm)
NS 5202 °°(°/L°°00…PA…PK)
WARNING:
ALWAYS USE ALL THE
PROVIDED EYEBOLTS
FOR THE LIFTING OF
THE UNIT
POSITION OF VIBRATION DAMPERS
POSITION FOR LIFTING
1) the weight of the
pumps to be added
to the version without
hydronic kit
− PA 69 Kg
− PB 138 Kg
− PC 75 Kg
− PD 150 Kg
− PE 91 Kg
− PF 182 Kg
− PG 100 Kg
− PH 200 Kg
− PJ 108 Kg
− PK 216 Kg
NS
Heat recovery
Version
Hydronic kit
(1)
Weight and centre
of gravity
when empty
(kg)
Support 1 Support 2 Support 3 Support 4 Support 5 Support 6 Support 7 Support 8 Support 9
Support 10 Support 11 Support 12 Support 13 Support 14 Support 15 Support 16
Kit AVX
kgx y %%%%%%%%%%%%%%%%
5202 ° °/L 00 10100 4877 1186
5.8 6.7 13.3 15.5 1.0 1.2 2.2 2.5 7.0 8.2 12.3 14.4 1.0 1.2 3.6 4.2 535
5202 D °/L 00 10220 4877 1186 5.8 6.7 13.3 15.5 1.0 1.2 2.2 2.5 7.0 8.2 12.3 14.4 1.0 1.2 3.6 4.2 535
5202 T °/L 00 --------------------
