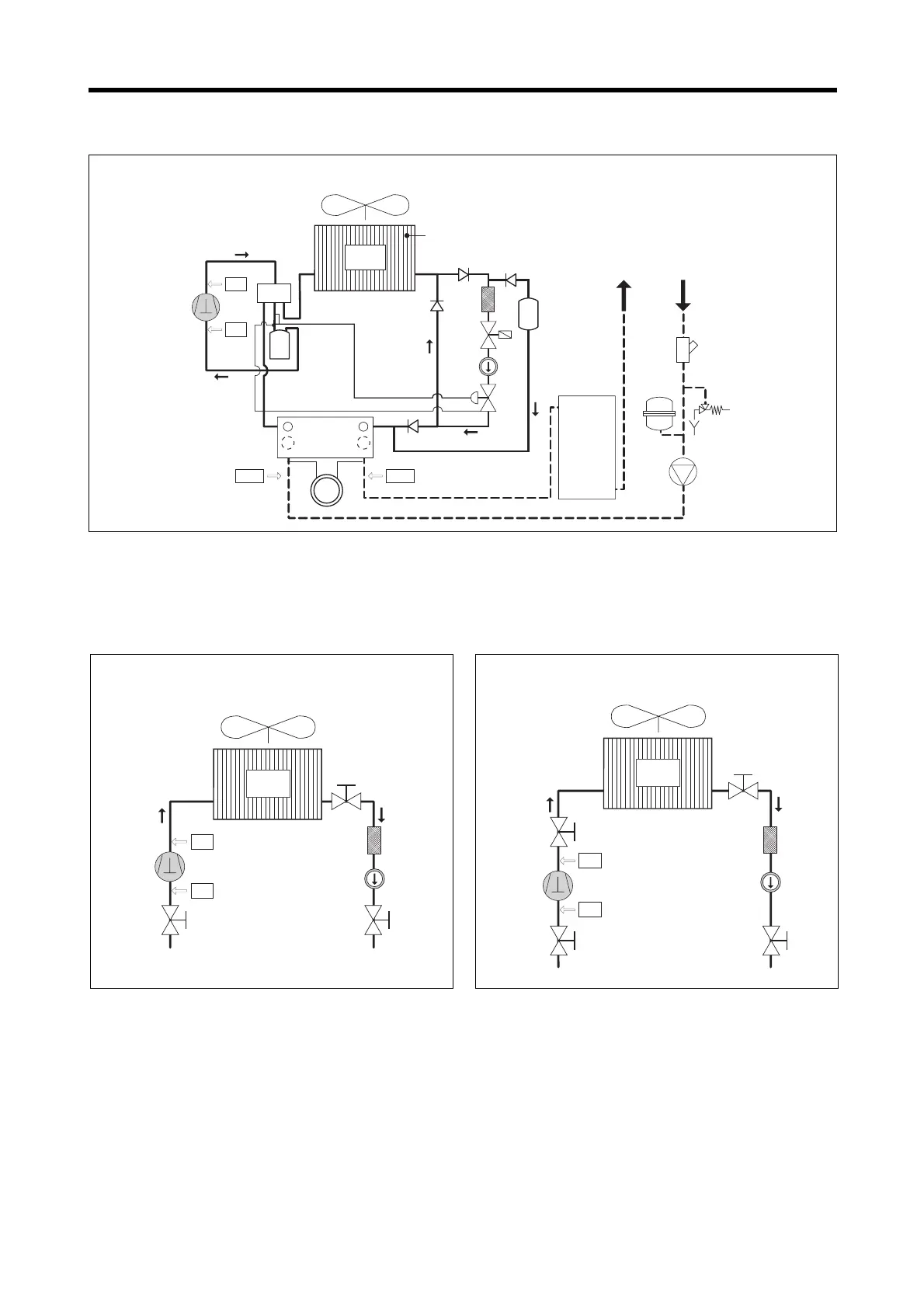

LAY-OUT CIRCUITO FRIGORIFERO E DISPOSITIVI DI CONTROLLO
LAY-OUT OF CHILLER CIRCUIT AND CONTROL DEVICES
V
CP
AP
CN
BP
RU RU
FD
IDL
RU
AN 020 C - 025 C - 030 C - 041 C - 050 C - 080 C - 090 C
V
CP
FD
AP
CN
BP
RU
IDL
RU
RU
RU
AN 100 C - 150 C
ACL
MP
VE
VS
FM
V
CP
PD
EV
AP
CN
BP
SUWSIW
SS
VU
SL
VU
VT
VU
FD
VSL**
IDL*
VU
SEP**
VIC
AN 050 HA - 150 HA
* Componente presente a partire dal mod AN100
* This component is installed starting from mod AN100
** Componente presente a partire dal mod AN090
** This component is installed starting from mod AN090
