English
21
IFCLIJ 1107 - 4528500_04
20°
10°

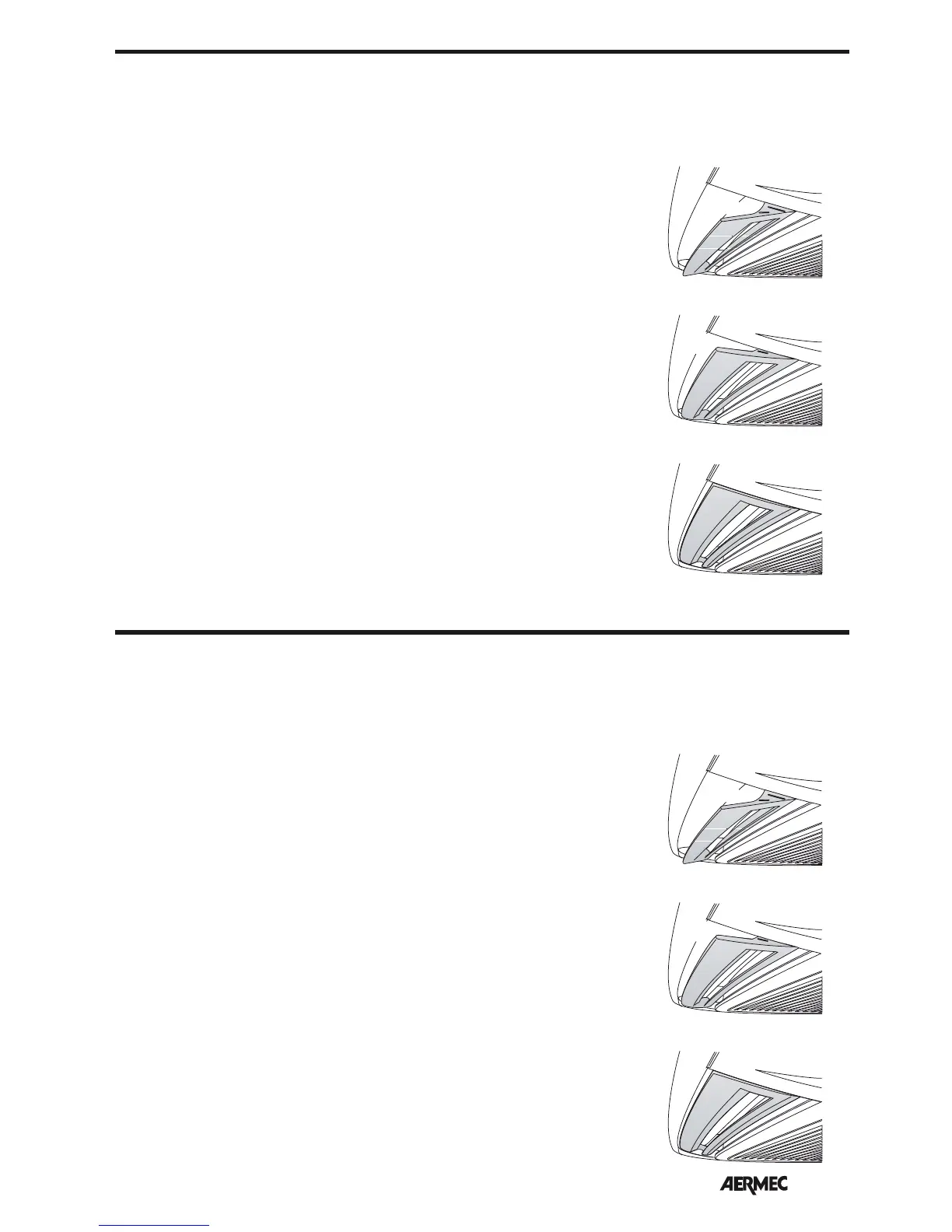

Position of the louvered fins in cooling mode
10° opening
Position of the louvered fins in heating mode
20° opening
Ventilation is allowed with the louvered fins closed.
In heating functioning mode,
a louvered fin opening of 20° is
recommended, indicated with a
raised line on the louvered fins (see
figure).
In cooling functioning mode,
a louvered fin opening of 10° is
recommended, indicated with a
raised line on the louvered fins (see
figure).
Ventilation is allowed with the
louvered fins closed.
USE (MODULE 600)
20°
10°
Position of the louvered fins in cooling mode
half-way opening
Position of the louvered fins in heating mode
completely open
Ventilation is allowed with the louvered fins closed.
Complete louvered fin opening is
recommended in heating functio-
ning mode (see figure).
In cooling functioning mode louve-
red fin opening of 50% is recom-
mended (see figure).
Ventilation is allowed with the lou-
vered fins closed.
USE (MODULE 840)
